Specifications: Fiat Doblo II (263) 1.6 Multijet (90 Hp) Start & Stop 7 Seat 2010, 2011, 2012, 2013, 2014, 2015

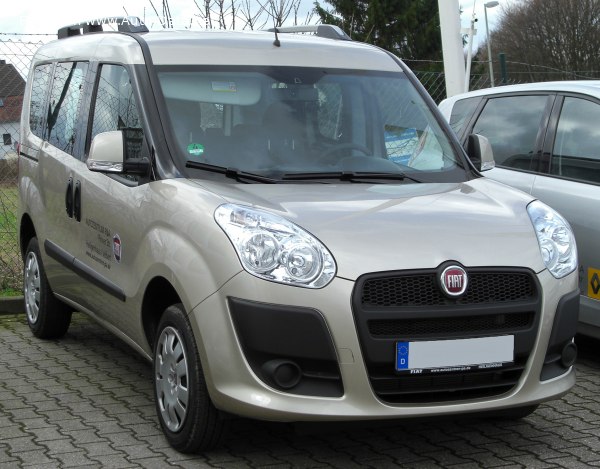

2010 Fiat Doblo II (263) - Photo 1

Fiat Doblo II (263) 1.6 Multijet (90 Hp) Start & Stop 7 Seat – Full specifications
General information
Brand Fiat
Model Doblo
Generation Doblo II (263)
Modification (Engine) 1.6 Multijet (90 Hp) Start & Stop 7 Seat
Start of production 2010 year
End of production 2015 year
Powertrain Architecture Internal Combustion engine
Body type Minivan
Seats 7
Doors 5
Performance specs
Fuel consumption (economy) – urban (NEDC) 6.8 l/100 km
34.6 US mpg
41.5 UK mpg
14.7 km/l
Fuel consumption (economy) – extra urban (NEDC) 4.7 l/100 km
50 US mpg
60.1 UK mpg
21.3 km/l
Fuel consumption (economy) – combined (NEDC) 5.5 l/100 km
42.8 US mpg
51.4 UK mpg
18.2 km/l
CO2 emissions (NEDC) 145 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 14.9 sec
Acceleration 0 – 62 mph 14.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 14.2 sec
Maximum speed 158 km/h
98.18 mph
Emission standard Euro 5
Weight-to-power ratio 15.9 kg/Hp, 62.9 Hp/tonne
Weight-to-torque ratio 4.9 kg/Nm, 202.8 Nm/tonne
Engine specs
Power 90 Hp @ 4000 rpm.
Power per litre 56.3 Hp/l
Torque 290 Nm @ 1500 rpm.
213.89 lb.-ft. @ 1500 rpm.
Engine layout Front, Transverse
Engine Model/Code 263A4000
Engine displacement 1598 cm3
97.52 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 79.5 mm
3.13 in.
Piston Stroke 80.5 mm
3.17 in.
Compression ratio 16.5:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4.9 l
5.18 US qt | 4.31 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.7 l
7.08 US qt | 5.9 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1430 kg
3152.61 lbs.
Max. weight 2115-2180 kg
4662.78 – 4806.08 lbs.
Max load 685-750 kg
1510.17 – 1653.47 lbs.
Trunk (boot) space – minimum 133 l
4.7 cu. ft.
Trunk (boot) space – maximum 3200 l
113.01 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (12%) 1000 kg
2204.62 lbs.
Permitted trailer load without brakes 500 kg
1102.31 lbs.
Permitted towbar download 60 kg
132.28 lbs.
Dimensions
Length 4390 mm
172.83 in.
Width 1832 mm
72.13 in.
Height 1845 mm
72.64 in.
Wheelbase 2755 mm
108.46 in.
Front track 1510 mm
59.45 in.
Rear (Back) track 1530 mm
60.24 in.
Front overhang 895 mm
35.24 in.
Rear overhang 740 mm
29.13 in.
Minimum turning circle (turning diameter) 11.2 m
36.75 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs, 305 mm
Rear brakes Drum, 254 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 195/60 R16
Wheel rims size 6J x 15
