Specifications: Fiat Egea (356) 1.6 E-Torq (110 Hp) Automatic 2016, 2017, 2018, 2019

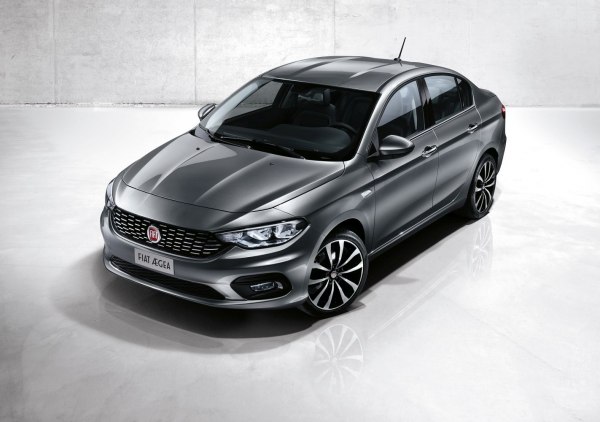

2016 Fiat Egea (356) - Photo 1

Fiat Egea (356) 1.6 E-Torq (110 Hp) Automatic – Full specifications
General information
Brand Fiat
Model Egea
Generation Egea (356)
Modification (Engine) 1.6 E-Torq (110 Hp) Automatic
Start of production 2016 year
End of production 2019 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 8.5 l/100 km
27.7 US mpg
33.2 UK mpg
11.8 km/l
Fuel consumption (economy) – extra urban 5 l/100 km
47 US mpg
56.5 UK mpg
20 km/l
Fuel consumption (economy) – combined 6.3 l/100 km
37.3 US mpg
44.8 UK mpg
15.9 km/l
CO2 emissions 146 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 11.2 sec
Acceleration 0 – 62 mph 11.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.6 sec
Maximum speed 192 km/h
119.3 mph
Emission standard Euro 6
Weight-to-power ratio 11 kg/Hp, 91.3 Hp/tonne
Weight-to-torque ratio 7.9 kg/Nm, 126.1 Nm/tonne
Engine specs
Power 110 Hp @ 5500 rpm.
Power per litre 68.8 Hp/l
Torque 152 Nm @ 4500 rpm.
112.11 lb.-ft. @ 4500 rpm.
Engine layout Front, Transverse
Engine Model/Code 55268036
Engine displacement 1598 cm3
97.52 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 77 mm
3.03 in.
Piston Stroke 85.8 mm
3.38 in.
Compression ratio 11.1:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain SOHC
Engine oil capacity 4.7 l
4.97 US qt | 4.14 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.4 l
5.71 US qt | 4.75 UK qt

Space, Volume and weights
Kerb Weight 1205 kg
2656.57 lbs.
Max. weight 1705 kg
3758.88 lbs.
Max load 500 kg
1102.31 lbs.
Trunk (boot) space – minimum 520 l
18.36 cu. ft.
Fuel tank capacity 45 l
11.89 US gal | 9.9 UK gal
Max. roof load 55 kg
121.25 lbs.
Permitted trailer load with brakes (12%) 800 kg
1763.7 lbs.
Permitted trailer load without brakes 500 kg
1102.31 lbs.
Permitted towbar download 60 kg
132.28 lbs.
Dimensions
Length 4532 mm
178.43 in.
Width 1792 mm
70.55 in.
Width including mirrors 2002 mm
78.82 in.
Height 1497 mm
58.94 in.
Wheelbase 2636 mm
103.78 in.
Front track 1542 mm
60.71 in.
Rear (Back) track 1543 mm
60.75 in.
Front overhang 893 mm
35.16 in.
Rear overhang 1003 mm
39.49 in.
Minimum turning circle (turning diameter) 10.9 m
35.76 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Independent type McPherson
Rear suspension Torsion
Front brakes Disc, 284×22 mm
Rear brakes Drum, 228×40 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 195/65 R15; 205/55 R16; 225/45 R17
Wheel rims size 6J x 15; 6.5J x 16; 7J x 17
