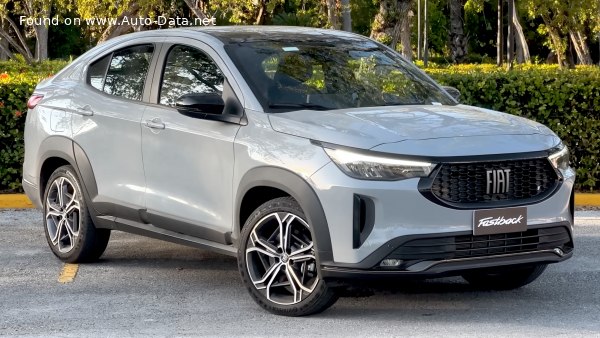

2023 Fiat Fastback - Photo 1

Fiat Fastback 1.0 T200 (120 Hp) CVT – Full specifications
General information
Brand Fiat
Model Fastback
Generation Fastback
Modification (Engine) 1.0 T200 (120 Hp) CVT
Start of production August, 2022 year
Powertrain Architecture Internal Combustion engine
Body type Coupe, SUV
Seats 5
Doors 5
Performance specs
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 10.2 sec
Acceleration 0 – 62 mph 10.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.7 sec
Maximum speed 190 km/h
118.06 mph
Weight-to-power ratio 10.4 kg/Hp, 96 Hp/tonne
Weight-to-torque ratio 6.3 kg/Nm, 160 Nm/tonne
Engine specs
Power 120 Hp @ 5750 rpm.
Power per litre 120.1 Hp/l
Torque 200 Nm @ 1750 rpm.
147.51 lb.-ft. @ 1750 rpm.
Engine layout Front, Transverse
Engine Model/Code GSE T200
Engine displacement 999 cm3
60.96 cu. in.
Number of cylinders 3
Engine configuration Inline
Cylinder Bore 70.03 mm
2.76 in.
Piston Stroke 86.5 mm
3.41 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain SOHC, MultiAir III
Engine oil capacity 3.6 l
3.8 US qt | 3.17 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.65 l
7.03 US qt | 5.85 UK qt

Space, Volume and weights
Kerb Weight 1250-1261 kg
2755.78 – 2780.03 lbs.
Max. weight 1650-1661 kg
3637.63 – 3661.88 lbs.
Max load 400 kg
881.85 lbs.
Trunk (boot) space – minimum 600 l
21.19 cu. ft.
Trunk (boot) space – maximum 1087 l
38.39 cu. ft.
Fuel tank capacity 47 l
12.42 US gal | 10.34 UK gal
Permitted trailer load without brakes 400 kg
881.85 lbs.
Dimensions
Length 4427 mm
174.29 in.
Width 1774 mm
69.84 in.
Width including mirrors 1990 mm
78.35 in.
Height 1545 mm
60.83 in.
Wheelbase 2532 mm
99.69 in.
Front track 1484 mm
58.43 in.
Rear (Back) track 1510 mm
59.45 in.
Front overhang 854 mm
33.62 in.
Rear overhang 1041 mm
40.98 in.
Ride height (ground clearance) 190-191 mm
7.48 – 7.52 in.
Minimum turning circle (turning diameter) 10.5-10.7 m
34.45 – 35.1 ft.
Approach angle 20-20.2°
Departure angle 24.2-24.6°
Ramp-over (brakeover) angle 20.8-21°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox automatic transmission CVT
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Coil spring, Torsion
Front brakes Ventilated discs, 284 mm
Rear brakes Drum, 203 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/50 R17; 215/45 R18
Wheel rims size 6J x 17; 7J x 17; 7J x 18
