Specifications: Fiat Grande Panda 1.2 (110 Hp) Mild Hybrid eDCT 2025

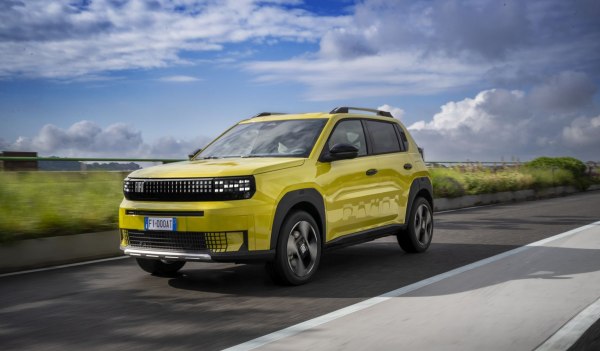

2025 Fiat Grande Panda - Photo 1

Fiat Grande Panda 1.2 (110 Hp) Mild Hybrid eDCT – Full specifications
General information
Brand Fiat
Model Grande Panda
Generation Grande Panda
Modification (Engine) 1.2 (110 Hp) Mild Hybrid eDCT
Start of production May, 2025 year
Powertrain Architecture MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Body type Hatchback
Seats 5
Doors 5
Performance specs
Combined fuel consumption (WLTP) 5.1 l/100 km
46.1 US mpg
55.4 UK mpg
19.6 km/l
CO2 emissions (WLTP) 115-117 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 10 sec
Acceleration 0 – 62 mph 10 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.5 sec
Maximum speed 160 km/h
99.42 mph
Emission standard Euro 6e
Electric cars and hybrids specs
Gross battery capacity 0.876 kWh
Battery voltage 48 V
Battery technology Lithium nickel manganese cobalt oxides (Li-NMC)
Battery weight 12 kg
26.46 lbs.
Electric motor 1
Electric motor power 28 Hp
Electric motor location Integrated into the transmission
Electric motor type Synchronous
System power 110 Hp
Internal combustion engine specs
Power 101 Hp
Power per litre 84.2 Hp/l
Torque 205 Nm
151.2 lb.-ft.
Engine layout Front, Transverse
Engine Model/Code EB2LTEDH2
Engine displacement 1199 cm3
73.17 cu. in.
Number of cylinders 3
Engine configuration Inline
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Trunk (boot) space – minimum 353 l
12.47 cu. ft.
Fuel tank capacity 44 l
11.62 US gal | 9.68 UK gal
Dimensions
Length 3999 mm
157.44 in.
Width 1763 mm
69.41 in.
Width including mirrors 2017 mm
79.41 in.
Height 1586 mm
62.44 in.
Wheelbase 2537 mm
99.88 in.
Minimum turning circle (turning diameter) 10.5 m
34.45 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission eDCT
Front suspension Independent type McPherson
Rear suspension Torsion
Front brakes Disc
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/60 R16
Wheel rims size 16
