Specifications: Fiat Grande Punto (199) 1.6 Multijet (120 Hp) 2008, 2009

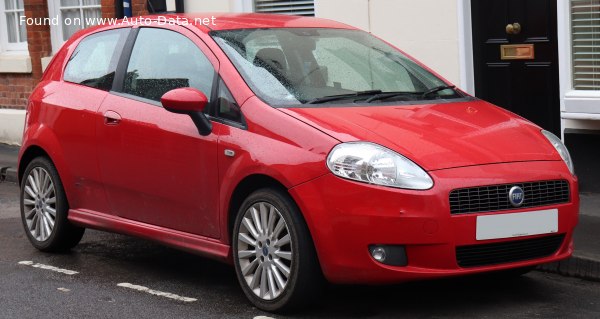

2006 Fiat Grande Punto (199) - Photo 1

Fiat Grande Punto (199) 1.6 Multijet (120 Hp) – Full specifications
General information
Brand Fiat
Model Punto
Generation Grande Punto (199)
Modification (Engine) 1.6 Multijet (120 Hp)
Start of production 2008 year
End of production 2009 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 3-5
Performance specs
Fuel consumption (economy) – urban 5.9 l/100 km
39.9 US mpg
47.9 UK mpg
16.9 km/l
Fuel consumption (economy) – extra urban 4.1 l/100 km
57.4 US mpg
68.9 UK mpg
24.4 km/l
Fuel consumption (economy) – combined 4.8 l/100 km
49 US mpg
58.9 UK mpg
20.8 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 9.6 sec
Acceleration 0 – 62 mph 9.6 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.1 sec
Maximum speed 190 km/h
118.06 mph
Emission standard Euro 4
Weight-to-power ratio 9.9 kg/Hp, 100.8 Hp/tonne
Weight-to-torque ratio 3.7 kg/Nm, 268.9 Nm/tonne
Engine specs
Power 120 Hp @ 3750 rpm.
Power per litre 75.1 Hp/l
Torque 320 Nm @ 1750 rpm.
236.02 lb.-ft. @ 1750 rpm.
Engine layout Front, Transverse
Engine Model/Code 955A3000
Engine displacement 1598 cm3
97.52 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 79.5 mm
3.13 in.
Piston Stroke 80.5 mm
3.17 in.
Compression ratio 16.5:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4.6 l
4.86 US qt | 4.05 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.7 l
6.02 US qt | 5.02 UK qt

Space, Volume and weights
Kerb Weight 1190 kg
2623.5 lbs.
Max. weight 1750 kg
3858.09 lbs.
Max load 560 kg
1234.59 lbs.
Trunk (boot) space – minimum 275 l
9.71 cu. ft.
Trunk (boot) space – maximum 1020 l
36.02 cu. ft.
Fuel tank capacity 45 l
11.89 US gal | 9.9 UK gal
Dimensions
Length 4030 mm
158.66 in.
Width 1687 mm
66.42 in.
Height 1490 mm
58.66 in.
Wheelbase 2510 mm
98.82 in.
Front track 1473 mm
57.99 in.
Rear (Back) track 1466 mm
57.72 in.
Drag coefficient (Cd) 0.34
Minimum turning circle (turning diameter) 10.5 m
34.45 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Semi-dependent beam with stabilizer lateral stability
Front brakes Disc
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 175/65 R15 H; 185/65 R15 H
Wheel rims size 15
