Specifications: Fiat Ottimo 1.4 T-Jet (150 Hp) DDCT 2014, 2015, 2016, 2017

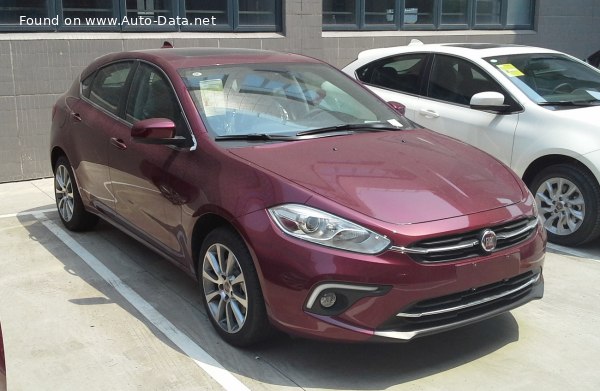

2013 Fiat Ottimo - Photo 1

Fiat Ottimo 1.4 T-Jet (150 Hp) DDCT – Full specifications
General information
Brand Fiat
Model Ottimo
Generation Ottimo
Modification (Engine) 1.4 T-Jet (150 Hp) DDCT
Start of production 2014 year
End of production 2017 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – combined 7.3 l/100 km
32.2 US mpg
38.7 UK mpg
13.7 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 9.9 sec
Acceleration 0 – 62 mph 9.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.4 sec
Maximum speed 207 km/h
128.62 mph
Emission standard Euro 5
Weight-to-power ratio 9.7 kg/Hp, 102.7 Hp/tonne
Weight-to-torque ratio 6.3 kg/Nm, 157.5 Nm/tonne
Engine specs
Power 150 Hp @ 5500 rpm.
Power per litre 109.6 Hp/l
Torque 230 Nm @ 3000 rpm.
169.64 lb.-ft. @ 3000 rpm.
Engine layout Front, Transverse
Engine Model/Code 343A0027
Engine displacement 1368 cm3
83.48 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 72 mm
2.83 in.
Piston Stroke 84 mm
3.31 in.
Compression ratio 9.8:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 3.2 l
3.38 US qt | 2.82 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.4 l
5.71 US qt | 4.75 UK qt

Space, Volume and weights
Kerb Weight 1460-1475 kg
3218.75 – 3251.82 lbs.
Trunk (boot) space – minimum 347 l
12.25 cu. ft.
Trunk (boot) space – maximum 1253 l
44.25 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Dimensions
Length 4545 mm
178.94 in.
Width 1850 mm
72.83 in.
Height 1475 mm
58.07 in.
Wheelbase 2708 mm
106.61 in.
Front track 1572 mm
61.89 in.
Rear (Back) track 1570 mm
61.81 in.
Minimum turning circle (turning diameter) 11.2 m
36.75 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 7 gears, automatic transmission DDCT
Front suspension Independent type McPherson
Rear suspension Torsion
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/55 R16; 225/45 R17
Wheel rims size 16; 17
