Specifications: Fiat Pandina 1.0 GSE (70 Hp) Mild Hybrid 2024, 2025

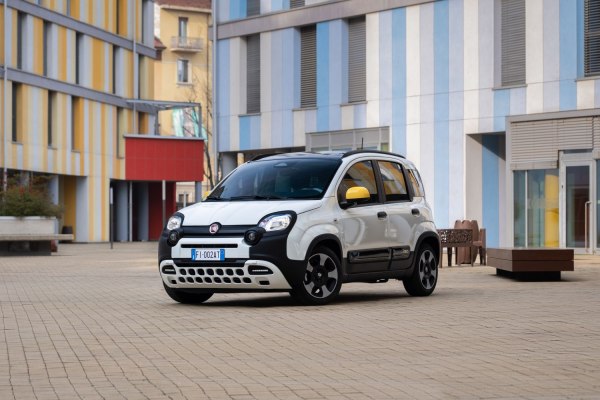

2024 Fiat Pandina - Photo 1

Fiat Pandina 1.0 GSE (70 Hp) Mild Hybrid – Full specifications
General information
Brand Fiat
Model Panda
Generation Pandina
Modification (Engine) 1.0 GSE (70 Hp) Mild Hybrid
Start of production May, 2024 year
Powertrain Architecture MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Body type Hatchback
Seats 4-5
Doors 5
Performance specs
Fuel consumption at Low speed (WLTP) 5.1 l/100 km
46.1 US mpg
55.4 UK mpg
19.6 km/l
Fuel consumption at Medium speed (WLTP) 4.8 l/100 km
49 US mpg
58.9 UK mpg
20.8 km/l
Fuel consumption at high speed (WLTP) 4.5 l/100 km
52.3 US mpg
62.8 UK mpg
22.2 km/l
Fuel consumption at very high speed (WLTP) 6.2 l/100 km
37.9 US mpg
45.6 UK mpg
16.1 km/l
Combined fuel consumption (WLTP) 5.1-5.2 l/100 km
46.1 – 45.2 US mpg
55.4 – 54.3 UK mpg
19.6 – 19.2 km/l
CO2 emissions (WLTP) 116-117 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 14.7 sec
Acceleration 0 – 62 mph 14.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 14 sec
Maximum speed 155 km/h
96.31 mph
Emission standard Euro 6d
Weight-to-power ratio 14 kg/Hp, 71.4 Hp/tonne
Weight-to-torque ratio 10.7 kg/Nm, 93.9 Nm/tonne
Engine specs
Power 70 Hp @ 5500 rpm.
Power per litre 70.1 Hp/l
Torque 92 Nm @ 3500 rpm.
67.86 lb.-ft. @ 3500 rpm.
Engine layout Front, Transverse
Engine Model/Code 46341162
Engine displacement 999 cm3
60.96 cu. in.
Number of cylinders 3
Engine configuration Inline
Cylinder Bore 70 mm
2.76 in.
Piston Stroke 86.5 mm
3.41 in.
Compression ratio 12:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 2.5 l
2.64 US qt | 2.2 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 4.4 l
4.65 US qt | 3.87 UK qt
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 980 kg
2160.53 lbs.
Max. weight 1440 kg
3174.66 lbs.
Max load 460 kg
1014.13 lbs.
Trunk (boot) space – minimum 225 l
7.95 cu. ft.
Fuel tank capacity 38 l
10.04 US gal | 8.36 UK gal
Dimensions
Length 3705 mm
145.87 in.
Width 1662 mm
65.43 in.
Width including mirrors 1882 mm
74.09 in.
Height 1657 mm
65.24 in.
Wheelbase 2300 mm
90.55 in.
Front track 1406 mm
55.35 in.
Rear (Back) track 1403 mm
55.24 in.
Minimum turning circle (turning diameter) 9.3 m
30.51 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work only in mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Transverse stabilizer, Torsion
Front brakes Disc, 257 mm
Rear brakes Drum, 180 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 175/65 R14; 175/65 R15; 185/55 R15
Wheel rims size 14; 15
