Specifications: Fiat Punto Classic 3d 1.3 Multijet (70 Hp) 2007, 2008, 2009, 2010

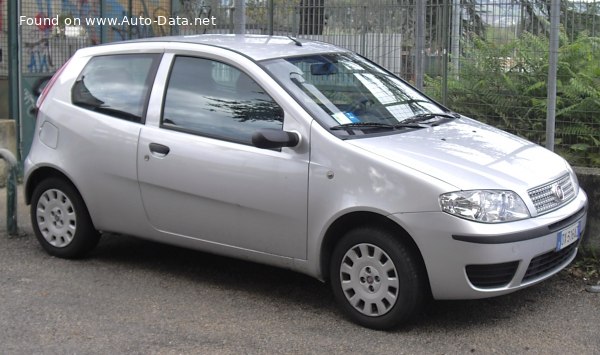

2007 Fiat Punto Classic 3d - Photo 1

Fiat Punto Classic 3d 1.3 Multijet (70 Hp) – Full specifications
General information
Brand Fiat
Model Punto
Generation Punto Classic 3d
Modification (Engine) 1.3 Multijet (70 Hp)
Start of production 2007 year
End of production 2010 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 3
Performance specs
Fuel consumption (economy) – urban 5.6 l/100 km
42 US mpg
50.4 UK mpg
17.9 km/l
Fuel consumption (economy) – extra urban 3.9 l/100 km
60.3 US mpg
72.4 UK mpg
25.6 km/l
Fuel consumption (economy) – combined 4.5 l/100 km
52.3 US mpg
62.8 UK mpg
22.2 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 13.4 sec
Acceleration 0 – 62 mph 13.4 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 12.7 sec
Maximum speed 164 km/h
101.9 mph
Emission standard Euro 4
Weight-to-power ratio 13.8 kg/Hp, 72.5 Hp/tonne
Weight-to-torque ratio 5.4 kg/Nm, 186.5 Nm/tonne
Engine specs
Power 70 Hp @ 4000 rpm.
Power per litre 56.1 Hp/l
Torque 180 Nm @ 1750 rpm.
132.76 lb.-ft. @ 1750 rpm.
Engine layout Front, Transverse
Engine Model/Code 188A9000
Engine displacement 1248 cm3
76.16 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 69.6 mm
2.74 in.
Piston Stroke 82 mm
3.23 in.
Compression ratio 18:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 3 l
3.17 US qt | 2.64 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6 l
6.34 US qt | 5.28 UK qt

Space, Volume and weights
Kerb Weight 965 kg
2127.46 lbs.
Max. weight 1475 kg
3251.82 lbs.
Max load 510 kg
1124.36 lbs.
Trunk (boot) space – minimum 264 l
9.32 cu. ft.
Trunk (boot) space – maximum 1080 l
38.14 cu. ft.
Fuel tank capacity 47 l
12.42 US gal | 10.34 UK gal
Dimensions
Length 3840 mm
151.18 in.
Width 1660 mm
65.35 in.
Height 1480 mm
58.27 in.
Wheelbase 2460 mm
96.85 in.
Front track 1398 mm
55.04 in.
Rear (Back) track 1392 mm
54.8 in.
Drag coefficient (Cd) 0.32
Minimum turning circle (turning diameter) 10.5 m
34.45 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Spring Strut
Rear suspension Torsion
Front brakes Disc
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 165/70 R14
