Specifications: Fiat Punto I (176) 90 1.6 (88 Hp) 1994, 1995, 1996, 1997

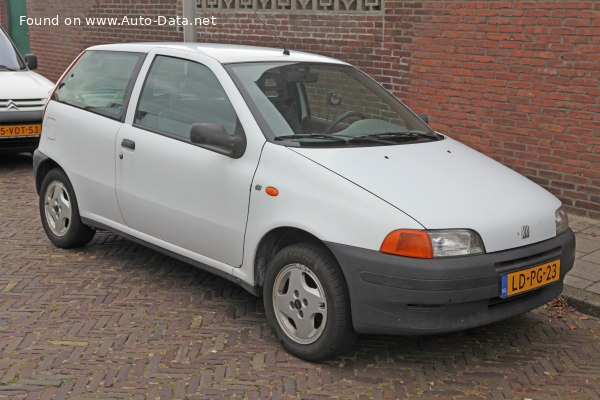

1994 Fiat Punto I (176) - Photo 1

Fiat Punto I (176) 90 1.6 (88 Hp) – Full specifications
General information
Brand Fiat
Model Punto
Generation Punto I (176)
Modification (Engine) 90 1.6 (88 Hp)
Start of production 1994 year
End of production 1997 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 3-5
Performance specs
Fuel consumption (economy) – urban 9.5 l/100 km
24.8 US mpg
29.7 UK mpg
10.5 km/l
Fuel consumption (economy) – extra urban 8 l/100 km
29.4 US mpg
35.3 UK mpg
12.5 km/l
Fuel consumption (economy) – combined 7.8 l/100 km
30.2 US mpg
36.2 UK mpg
12.8 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 11.5 sec
Acceleration 0 – 62 mph 11.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.9 sec
Maximum speed 178 km/h
110.6 mph
Weight-to-power ratio 11.2 kg/Hp, 89.3 Hp/tonne
Weight-to-torque ratio 7.8 kg/Nm, 128.9 Nm/tonne
Engine specs
Power 88 Hp @ 5750 rpm.
Power per litre 55.7 Hp/l
Torque 127 Nm @ 2750 rpm.
93.67 lb.-ft. @ 2750 rpm.
Engine layout Front, Transverse
Engine Model/Code 176 A9.000
Engine displacement 1581 cm3
96.48 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 86.4 mm
3.4 in.
Piston Stroke 67.4 mm
2.65 in.
Compression ratio 9.8:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain OHC
Engine oil capacity 3.6 l
3.8 US qt | 3.17 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.9 l
6.23 US qt | 5.19 UK qt

Space, Volume and weights
Kerb Weight 985 kg
2171.55 lbs.
Max. weight 1425 kg
3141.59 lbs.
Max load 440 kg
970.03 lbs.
Trunk (boot) space – minimum 275 l
9.71 cu. ft.
Trunk (boot) space – maximum 1080 l
38.14 cu. ft.
Fuel tank capacity 47 l
12.42 US gal | 10.34 UK gal
Dimensions
Length 3770 mm
148.43 in.
Width 1625 mm
63.98 in.
Height 1460 mm
57.48 in.
Wheelbase 2450 mm
96.46 in.
Front track 1369 mm
53.9 in.
Rear (Back) track 1352 mm
53.23 in.
Drag coefficient (Cd) 0.31
Minimum turning circle (turning diameter) 10.2 m
33.46 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Wishbone
Rear suspension Trailing arm
Front brakes Disc
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 175/60 R14
