Specifications: Fiat Scudo III (facelift 2023) Panel Van 2.0 Multijet (177 Hp) Automatic L2 2023, 2024, 2025

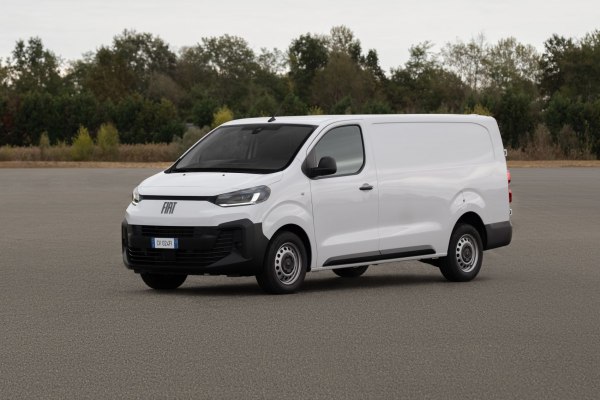

2024 Fiat Scudo III (facelift 2023) Panel Van - Photo 1

Fiat Scudo III (facelift 2023) Panel Van 2.0 Multijet (177 Hp) Automatic L2 – Full specifications
General information
Brand Fiat
Model Scudo
Generation Scudo III (facelift 2023) Panel Van
Modification (Engine) 2.0 Multijet (177 Hp) Automatic L2
Start of production November, 2023 year
Powertrain Architecture Internal Combustion engine
Body type Van
Seats 2-3
Doors 4-5
Performance specs
Combined fuel consumption (WLTP) 7.2 l/100 km
32.7 US mpg
39.2 UK mpg
13.9 km/l
CO2 emissions (WLTP) 188 g/km
Fuel Type Diesel
Emission standard Euro 6d-Final
Engine specs
Power 177 Hp @ 3750 rpm.
Power per litre 88.6 Hp/l
Torque 400 Nm @ 1750 rpm.
295.02 lb.-ft. @ 1750 rpm.
Engine layout Front, Transverse
Engine Model/Code DW10FDCU
Engine displacement 1997 cm3
121.86 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 85 mm
3.35 in.
Piston Stroke 88 mm
3.46 in.
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 5 l
5.28 US qt | 4.4 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Trunk (boot) space – minimum 5300 l
187.17 cu. ft.
Trunk (boot) space – maximum 5800 l
204.83 cu. ft.
Fuel tank capacity 69 l
18.23 US gal | 15.18 UK gal
AdBlue tank 22.4 l
5.92 US gal | 4.93 UK gal
Dimensions
Length 4983 mm
196.18 in.
Width 1920 mm
75.59 in.
Width including mirrors 2204 mm
86.77 in.
Height 1895 mm
74.61 in.
Wheelbase 3275 mm
128.94 in.
Front track 1627 mm
64.06 in.
Rear (Back) track 1600 mm
62.99 in.
Front overhang 904 mm
35.59 in.
Rear overhang 803 mm
31.61 in.
Ride height (ground clearance) 150 mm
5.91 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 8 gears, automatic transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Trailing arm
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 215/65 R16; 215/60 R17
Wheel rims size 16; 17
