Specifications: Fiat Stilo (3-door, facelift 2003) 1.9 16V JTD (140 Hp) 2003, 2004, 2005

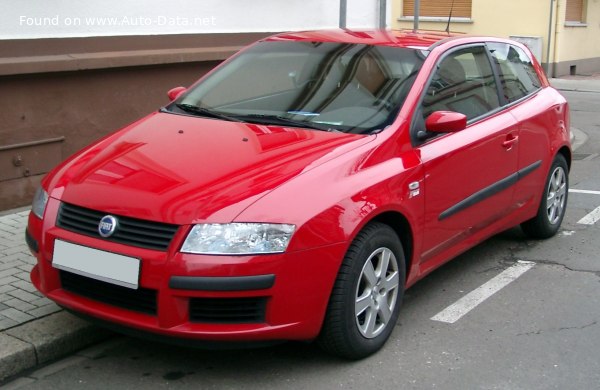

2004 Fiat Stilo (3-door, facelift 2003) - Photo 1

Fiat Stilo (3-door, facelift 2003) 1.9 16V JTD (140 Hp) – Full specifications
General information
Brand Fiat
Model Stilo
Generation Stilo (3-door, facelift 2003)
Modification (Engine) 1.9 16V JTD (140 Hp)
Start of production 2003 year
End of production 2005 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 3
Performance specs
Fuel consumption (economy) – urban 7.6 l/100 km
30.9 US mpg
37.2 UK mpg
13.2 km/l
Fuel consumption (economy) – extra urban 4.2 l/100 km
56 US mpg
67.3 UK mpg
23.8 km/l
Fuel consumption (economy) – combined 5.4 l/100 km
43.6 US mpg
52.3 UK mpg
18.5 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 9.7 sec
Acceleration 0 – 62 mph 9.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.2 sec
Maximum speed 203 km/h
126.14 mph
Emission standard Euro 3
Weight-to-power ratio 9.2 kg/Hp, 108.9 Hp/tonne
Weight-to-torque ratio 4.2 kg/Nm, 237.4 Nm/tonne
Engine specs
Power 140 Hp @ 4000 rpm.
Power per litre 73.3 Hp/l
Torque 305 Nm @ 2000 rpm.
224.96 lb.-ft. @ 2000 rpm.
Engine layout Front, Transverse
Engine Model/Code 192A5000
Engine displacement 1910 cm3
116.56 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82 mm
3.23 in.
Piston Stroke 90.4 mm
3.56 in.
Compression ratio 18:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4.5 l
4.76 US qt | 3.96 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.3 l
6.66 US qt | 5.54 UK qt

Space, Volume and weights
Kerb Weight 1285 kg
2832.94 lbs.
Max. weight 1650 kg
3637.63 lbs.
Max load 365 kg
804.69 lbs.
Trunk (boot) space – minimum 305 l
10.77 cu. ft.
Trunk (boot) space – maximum 1000 l
35.31 cu. ft.
Fuel tank capacity 58 l
15.32 US gal | 12.76 UK gal
Dimensions
Length 4180 mm
164.57 in.
Width 1785 mm
70.28 in.
Height 1455 mm
57.28 in.
Wheelbase 2600 mm
102.36 in.
Front track 1515 mm
59.65 in.
Rear (Back) track 1510 mm
59.45 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent type McPherson
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 205/55 R16
Wheel rims size 6.5J x 16
