Specifications: Fiat Stilo Multi Wagon (facelift 2006) 1.9 Multijet 16V (150 Hp) 2006, 2007, 2008

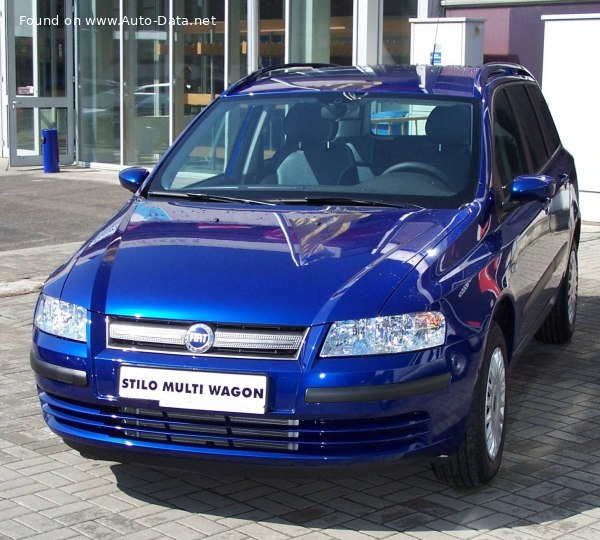

2006 Fiat Stilo Multi Wagon (facelift 2006) - Photo 1

Fiat Stilo Multi Wagon (facelift 2006) 1.9 Multijet 16V (150 Hp) – Full specifications
General information
Brand Fiat
Model Stilo
Generation Stilo Multi Wagon (facelift 2006)
Modification (Engine) 1.9 Multijet 16V (150 Hp)
Start of production 2006 year
End of production 2008 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 7.7 l/100 km
30.5 US mpg
36.7 UK mpg
13 km/l
Fuel consumption (economy) – extra urban 4.7 l/100 km
50 US mpg
60.1 UK mpg
21.3 km/l
Fuel consumption (economy) – combined 5.8 l/100 km
40.6 US mpg
48.7 UK mpg
17.2 km/l
CO2 emissions 154 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 9.2 sec
Acceleration 0 – 62 mph 9.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.7 sec
Maximum speed 207 km/h
128.62 mph
Emission standard Euro 4
Weight-to-power ratio 10 kg/Hp, 99.7 Hp/tonne
Weight-to-torque ratio 4.9 kg/Nm, 202.7 Nm/tonne
Engine specs
Power 150 Hp @ 4000 rpm.
Power per litre 78.5 Hp/l
Torque 305 Nm @ 2000 rpm.
224.96 lb.-ft. @ 2000 rpm.
Engine layout Front, Transverse
Engine Model/Code 937A5000
Engine displacement 1910 cm3
116.56 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82 mm
3.23 in.
Piston Stroke 90.4 mm
3.56 in.
Compression ratio 17.5:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4.7 l
4.97 US qt | 4.14 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7 l
7.4 US qt | 6.16 UK qt

Space, Volume and weights
Kerb Weight 1505 kg
3317.96 lbs.
Max. weight 1940 kg
4276.97 lbs.
Max load 435 kg
959.01 lbs.
Trunk (boot) space – minimum 510 l
18.01 cu. ft.
Trunk (boot) space – maximum 1480 l
52.27 cu. ft.
Fuel tank capacity 58 l
15.32 US gal | 12.76 UK gal
Max. roof load 80 kg
176.37 lbs.
Permitted trailer load with brakes (12%) 1000 kg
2204.62 lbs.
Permitted trailer load without brakes 500 kg
1102.31 lbs.
Permitted towbar download 60 kg
132.28 lbs.
Dimensions
Length 4516 mm
177.8 in.
Width 1756 mm
69.13 in.
Height 1570 mm
61.81 in.
Wheelbase 2600 mm
102.36 in.
Front track 1514 mm
59.61 in.
Rear (Back) track 1508 mm
59.37 in.
Front overhang 893 mm
35.16 in.
Rear overhang 1023 mm
40.28 in.
Minimum turning circle (turning diameter) 10.6 m
34.78 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent type McPherson
Rear suspension Coil spring, Torsion
Front brakes Ventilated discs, 284 mm
Rear brakes Disc, 251 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 195/65 R15
Wheel rims size 15
