Specifications: Fiat Tipo (358, facelift 2020) Wagon 1.3 MultiJet (95 Hp) 2020, 2021, 2022, 2023, 2024, 2025

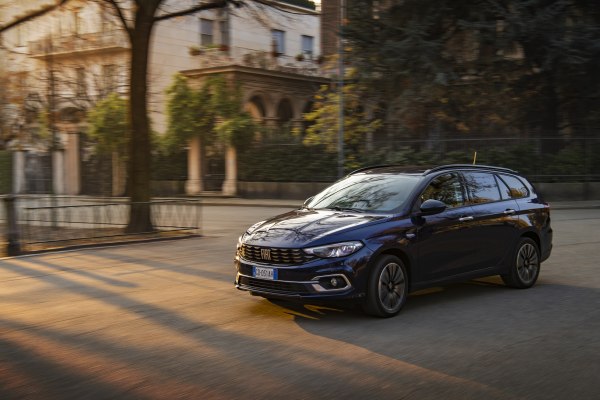

2021 Fiat Tipo (358, facelift 2020) Wagon - Photo 1

Fiat Tipo (358, facelift 2020) Wagon 1.3 MultiJet (95 Hp) – Full specifications
General information
Brand Fiat
Model Tipo
Generation Tipo (358, facelift 2020) Wagon
Modification (Engine) 1.3 MultiJet (95 Hp)
Start of production 2020 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption at Low speed (WLTP) 5.1-5.2 l/100 km
46.1 – 45.2 US mpg
55.4 – 54.3 UK mpg
19.6 – 19.2 km/l
Fuel consumption at Medium speed (WLTP) 4.2-4.3 l/100 km
56 – 54.7 US mpg
67.3 – 65.7 UK mpg
23.8 – 23.3 km/l
Fuel consumption at high speed (WLTP) 3.7 l/100 km
63.6 US mpg
76.3 UK mpg
27 km/l
Fuel consumption at very high speed (WLTP) 4.7-4.8 l/100 km
50 – 49 US mpg
60.1 – 58.9 UK mpg
21.3 – 20.8 km/l
Combined fuel consumption (WLTP) 4.4 l/100 km
53.5 US mpg
64.2 UK mpg
22.7 km/l
CO2 emissions (WLTP) 114-116 g/km
Fuel consumption (economy) – combined (NEDC) 4.5 l/100 km
52.3 US mpg
62.8 UK mpg
22.2 km/l
CO2 emissions (NEDC) 119 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 13.5 sec
Acceleration 0 – 62 mph 13.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 12.8 sec
Maximum speed 180 km/h
111.85 mph
Emission standard Euro 6d Final
Weight-to-power ratio 13.8 kg/Hp, 72.5 Hp/tonne
Weight-to-torque ratio 6.6 kg/Nm, 152.7 Nm/tonne
Engine specs
Power 95 Hp @ 3750 rpm.
Power per litre 76.1 Hp/l
Torque 200 Nm @ 1500 rpm.
147.51 lb.-ft. @ 1500 rpm.
Engine layout Front, Transverse
Engine Model/Code 55283775
Engine displacement 1248 cm3
76.16 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 69.6 mm
2.74 in.
Piston Stroke 82 mm
3.23 in.
Compression ratio 16.8:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 3.9 l
4.12 US qt | 3.43 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.1 l
6.45 US qt | 5.37 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1310 kg
2888.06 lbs.
Max. weight 1860 kg
4100.6 lbs.
Max load 550 kg
1212.54 lbs.
Trunk (boot) space – minimum 550 l
19.42 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Permitted trailer load with brakes (12%) 1500 kg
3306.93 lbs.
Permitted trailer load without brakes 500 kg
1102.31 lbs.
Permitted towbar download 60 kg
132.28 lbs.
Dimensions
Length 4571 mm
179.96 in.
Width 1792 mm
70.55 in.
Height 1514 mm
59.61 in.
Wheelbase 2638 mm
103.86 in.
Front track 1542 mm
60.71 in.
Rear (Back) track 1543 mm
60.75 in.
Front overhang 893 mm
35.16 in.
Rear overhang 1040 mm
40.94 in.
Minimum turning circle (turning diameter) 10.9 m
35.76 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent type McPherson
Rear suspension Coil spring, Elastic beam
Front brakes Disc, 281 mm
Rear brakes Disc, 264 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
