Specifications: Fiat Ulysse II (179) 3.0 V6 24V (204 Hp) 2002, 2003, 2004, 2005

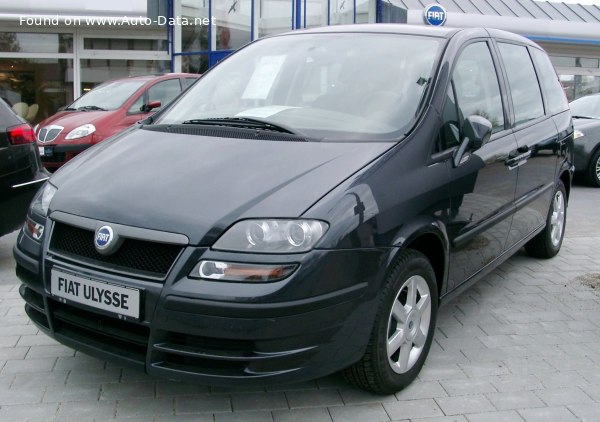

2003 Fiat Ulysse II (179) - Photo 1

Fiat Ulysse II (179) 3.0 V6 24V (204 Hp) – Full specifications
General information
Brand Fiat
Model Ulysse
Generation Ulysse II (179)
Modification (Engine) 3.0 V6 24V (204 Hp)
Start of production 2002 year
End of production 2005 year
Powertrain Architecture Internal Combustion engine
Body type Minivan, MPV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 15.8 l/100 km
14.9 US mpg
17.9 UK mpg
6.3 km/l
Fuel consumption (economy) – extra urban 9 l/100 km
26.1 US mpg
31.4 UK mpg
11.1 km/l
Fuel consumption (economy) – combined 11.5 l/100 km
20.5 US mpg
24.6 UK mpg
8.7 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 10.2 sec
Acceleration 0 – 62 mph 10.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.7 sec
Maximum speed 205 km/h
127.38 mph
Weight-to-power ratio 9 kg/Hp, 111.1 Hp/tonne
Weight-to-torque ratio 6.4 kg/Nm, 155.1 Nm/tonne
Engine specs
Power 204 Hp @ 6000 rpm.
Power per litre 69.2 Hp/l
Torque 285 Nm @ 3750 rpm.
210.21 lb.-ft. @ 3750 rpm.
Engine layout Front, Transverse
Engine Model/Code XFW
Engine displacement 2946 cm3
179.78 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 87 mm
3.43 in.
Piston Stroke 82.6 mm
3.25 in.
Compression ratio 10.9:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 4.75 l
5.02 US qt | 4.18 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 11 l
11.62 US qt | 9.68 UK qt

Space, Volume and weights
Kerb Weight 1837 kg
4049.89 lbs.
Trunk (boot) space – minimum 324 l
11.44 cu. ft.
Trunk (boot) space – maximum 2948 l
104.11 cu. ft.
Fuel tank capacity 80 l
21.13 US gal | 17.6 UK gal
Dimensions
Length 4730 mm
186.22 in.
Width 1850 mm
72.83 in.
Height 1750 mm
68.9 in.
Wheelbase 2825 mm
111.22 in.
Front track 1570 mm
61.81 in.
Rear (Back) track 1600 mm
62.99 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Spring Strut
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 205/65 R15
Wheel rims size 6.5J x 15
