Specifications: Fiat UNO (146A) 0.9 (45 Hp) 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992

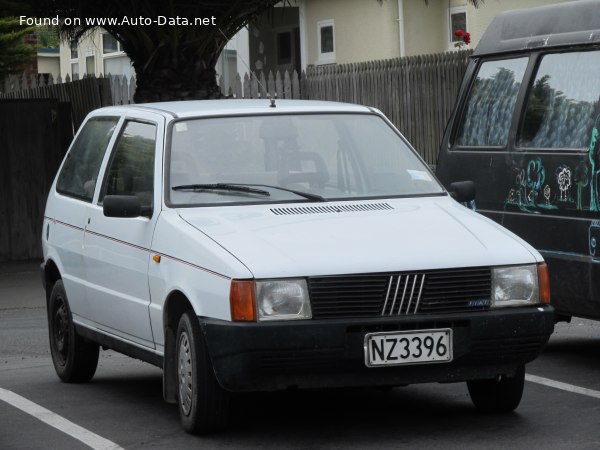

1983 Fiat UNO (146A) - Photo 1

Fiat UNO (146A) 0.9 (45 Hp) – Full specifications
General information
Brand Fiat
Model UNO
Generation UNO (146A)
Modification (Engine) 0.9 (45 Hp)
Start of production 1983 year
End of production 1992 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 3-5
Performance specs
Fuel consumption (economy) – urban 7.1 l/100 km
33.1 US mpg
39.8 UK mpg
14.1 km/l
Fuel consumption (economy) – extra urban 4.7 l/100 km
50 US mpg
60.1 UK mpg
21.3 km/l
Fuel consumption (economy) – combined 6.2 l/100 km
37.9 US mpg
45.6 UK mpg
16.1 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 17.9 sec
Acceleration 0 – 62 mph 17.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 17 sec
Maximum speed 140 km/h
86.99 mph
Weight-to-power ratio 16.4 kg/Hp, 60.8 Hp/tonne
Weight-to-torque ratio 11.2 kg/Nm, 89.2 Nm/tonne
Engine specs
Power 45 Hp @ 5600 rpm.
Power per litre 49.8 Hp/l
Torque 66 Nm @ 3000 rpm.
48.68 lb.-ft. @ 3000 rpm.
Engine layout Front, Transverse
Engine Model/Code 146 A1.000
Engine displacement 903 cm3
55.1 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 65 mm
2.56 in.
Piston Stroke 68 mm
2.68 in.
Compression ratio 9:1
Number of valves per cylinder 2
Fuel injection system Carburettor
Engine aspiration Naturally aspirated engine
Engine oil capacity 3.4 l
3.59 US qt | 2.99 UK qt
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Kerb Weight 740 kg
1631.42 lbs.
Max. weight 1200 kg
2645.55 lbs.
Max load 460 kg
1014.13 lbs.
Trunk (boot) space – minimum 270 l
9.53 cu. ft.
Trunk (boot) space – maximum 970 l
34.26 cu. ft.
Fuel tank capacity 40 l
10.57 US gal | 8.8 UK gal
Dimensions
Length 3690 mm
145.28 in.
Width 1560 mm
61.42 in.
Height 1420 mm
55.91 in.
Wheelbase 2360 mm
92.91 in.
Front track 1340 mm
52.76 in.
Rear (Back) track 1300 mm
51.18 in.
Minimum turning circle (turning diameter) 9.8 m
32.15 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Coil spring
Rear suspension Coil spring
Front brakes Disc
Rear brakes Drum
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 155/70 R13
Wheel rims size 13
