Specifications: Ford Aerostar 3.0i V6 (147 Hp) Automatic 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997

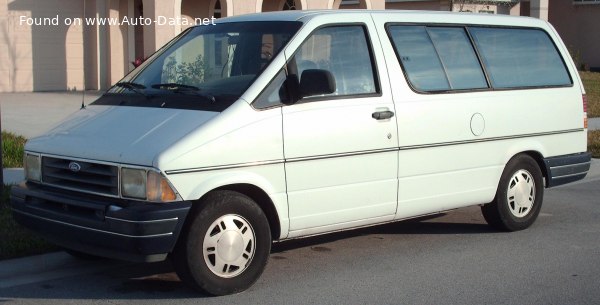

1986 Ford Aerostar - Photo 1

Ford Aerostar 3.0i V6 (147 Hp) Automatic – Full specifications
General information
Brand Ford
Model Aerostar
Generation Aerostar
Modification (Engine) 3.0i V6 (147 Hp) Automatic
Start of production 1986 year
End of production 1997 year
Powertrain Architecture Internal Combustion engine
Body type Minivan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 16 l/100 km
14.7 US mpg
17.7 UK mpg
6.3 km/l
Fuel consumption (economy) – extra urban 11 l/100 km
21.4 US mpg
25.7 UK mpg
9.1 km/l
Fuel Type Petrol (Gasoline)
Maximum speed 160 km/h
99.42 mph
Weight-to-power ratio 10.4 kg/Hp, 96.1 Hp/tonne
Weight-to-torque ratio 6.8 kg/Nm, 146.4 Nm/tonne
Engine specs
Power 147 Hp @ 4800 rpm.
Power per litre 49.3 Hp/l
Torque 224 Nm @ 3600 rpm.
165.21 lb.-ft. @ 3600 rpm.
Engine layout Front, Longitudinal
Engine displacement 2979 cm3
181.79 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 88.9 mm
3.5 in.
Piston Stroke 80 mm
3.15 in.
Compression ratio 9.3:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 4.2 l
4.44 US qt | 3.7 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 11.5 l
12.15 US qt | 10.12 UK qt

Space, Volume and weights
Kerb Weight 1530 kg
3373.07 lbs.
Trunk (boot) space – maximum 3835 l
135.43 cu. ft.
Fuel tank capacity 79 l
20.87 US gal | 17.38 UK gal
Dimensions
Length 4440 mm
174.8 in.
Width 1820 mm
71.65 in.
Height 1850 mm
72.83 in.
Wheelbase 3020 mm
118.9 in.
Front track 1560 mm
61.42 in.
Rear (Back) track 1525 mm
60.04 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Double wishbone
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Power steering Hydraulic Steering
Tires size 205/75 R14
Wheel rims size 14
