Specifications: Ford Aspire 1.3i (64 Hp) Automatic 1994, 1995, 1996, 1997, 1998

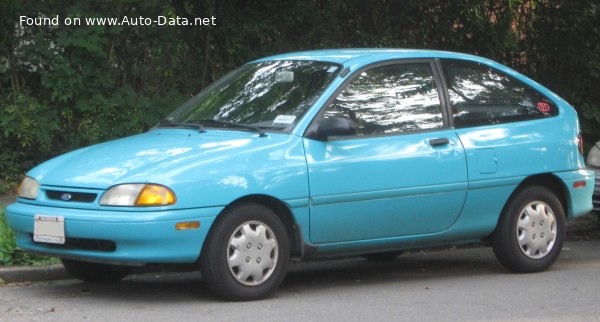

1994 Ford Aspire - Photo 1

Ford Aspire 1.3i (64 Hp) Automatic – Full specifications
General information
Brand Ford
Model Aspire
Generation Aspire
Modification (Engine) 1.3i (64 Hp) Automatic
Start of production 1994 year
End of production 1998 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 3
Performance specs
Fuel consumption (economy) – combined 7.3 l/100 km
32.2 US mpg
38.7 UK mpg
13.7 km/l
Fuel Type Petrol (Gasoline)
Maximum speed 145 km/h
90.1 mph
Weight-to-power ratio 14.2 kg/Hp, 70.4 Hp/tonne
Weight-to-torque ratio 9.1 kg/Nm, 110 Nm/tonne
Engine specs
Power 64 Hp @ 5000 rpm.
Power per litre 48.3 Hp/l
Torque 100 Nm @ 3000 rpm.
73.76 lb.-ft. @ 3000 rpm.
Engine layout Front, Transverse
Engine Model/Code B3
Engine displacement 1324 cm3
80.8 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 71 mm
2.8 in.
Piston Stroke 83.6 mm
3.29 in.
Compression ratio 9.7:1
Number of valves per cylinder 2
Fuel injection system Single-point injection
Engine aspiration Naturally aspirated engine
Valvetrain OHC
Engine oil capacity 3.4 l
3.59 US qt | 2.99 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6 l
6.34 US qt | 5.28 UK qt

Space, Volume and weights
Kerb Weight 909 kg
2004 lbs.
Fuel tank capacity 38 l
10.04 US gal | 8.36 UK gal
Dimensions
Length 4440 mm
174.8 in.
Width 1680 mm
66.14 in.
Height 1360 mm
53.54 in.
Wheelbase 2305 mm
90.75 in.
Front track 1435 mm
56.5 in.
Rear (Back) track 1435 mm
56.5 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 3 gears, automatic transmission
Front suspension Spring Strut
Rear suspension Coil spring
Front brakes Disc
Rear brakes Drum
Steering type Steering rack and pinion
Tires size 155/80 R13
Wheel rims size 13
