Specifications: Ford Bronco IV 5.8 V8 (213 Hp) AWD Automatic 1987, 1988, 1989, 1990, 1991

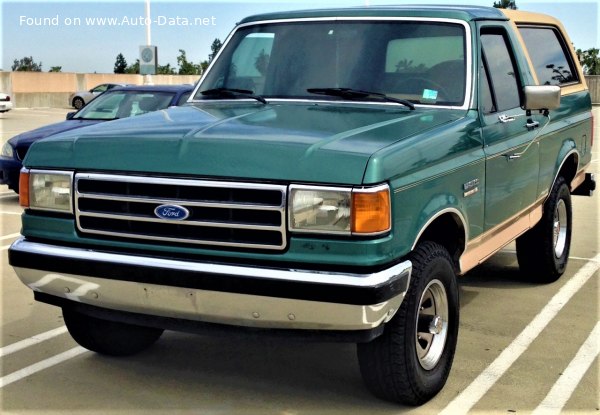

1987 Ford Bronco IV - Photo 1

Ford Bronco IV 5.8 V8 (213 Hp) AWD Automatic – Full specifications
General information
Brand Ford
Model Bronco
Generation Bronco IV
Modification (Engine) 5.8 V8 (213 Hp) AWD Automatic
Start of production 1987 year
End of production 1991 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5
Doors 3
Performance specs
Fuel consumption (economy) – urban 21.4 l/100 km
11 US mpg
13.2 UK mpg
4.7 km/l
Fuel consumption (economy) – extra urban 14.7 l/100 km
16 US mpg
19.2 UK mpg
6.8 km/l
Fuel consumption (economy) – combined 18.1 l/100 km
13 US mpg
15.6 UK mpg
5.5 km/l
Fuel Type Petrol (Gasoline)
Engine specs
Power 213 Hp @ 3800 rpm.
Power per litre 36.9 Hp/l
Torque 427 Nm @ 2800 rpm.
314.94 lb.-ft. @ 2800 rpm.
Engine layout Front, Longitudinal
Engine Model/Code Windsor
Engine displacement 5766 cm3
351.86 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 101.6 mm
4 in.
Piston Stroke 88.9 mm
3.5 in.
Compression ratio 8.8:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 4.7 l
4.97 US qt | 4.14 UK qt
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Max. weight 2150 kg
4739.94 lbs.
Fuel tank capacity 121 l
31.96 US gal | 26.62 UK gal
Dimensions
Length 4585 mm
180.51 in.
Width 2009 mm
79.09 in.
Height 1892 mm
74.49 in.
Wheelbase 2659 mm
104.69 in.
Front track 1654 mm
65.12 in.
Rear (Back) track 1636 mm
64.41 in.
Drag coefficient (Cd) 0.60
Minimum turning circle (turning diameter) 11.13 m
36.52 ft.
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 4 gears, automatic transmission
Front brakes Disc
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Tires size 235/75 R15
Wheel rims size 15
