| General information | |
|---|---|

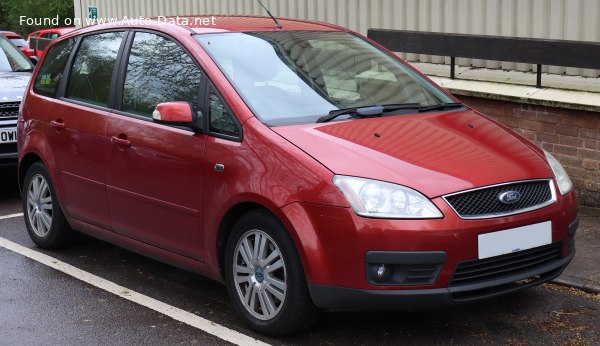

| Brand | Ford |
| Model | C-MAX |
| Generation | C-MAX |
| Modification (Engine) | 2.0 16V (145 Hp) |
| Start of production | 2003 year |
| End of production | 2007 year |
| Powertrain Architecture | Internal Combustion engine |
| Body type | MPV |
| Seats | 5 |
| Doors | 5 |
| Performance specs | |
| Fuel consumption (economy) – urban | 10 l/100 km 23.5 US mpg 28.2 UK mpg 10 km/l |
| Fuel consumption (economy) – extra urban | 5.6 l/100 km 42 US mpg 50.4 UK mpg 17.9 km/l |
| Fuel consumption (economy) – combined | 7.3 l/100 km 32.2 US mpg 38.7 UK mpg 13.7 km/l |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 9.8 sec |
| Acceleration 0 – 62 mph | 9.8 sec |
| Acceleration 0 – 60 mph (Calculated by Auto-Data.net) | 9.3 sec |
| Maximum speed | 203 km/h 126.14 mph |
| Weight-to-power ratio | 8.9 kg/Hp, 112.1 Hp/tonne |
| Weight-to-torque ratio | 7 kg/Nm, 143 Nm/tonne |
| Engine specs | |
| Power | 145 Hp @ 6000 rpm. |
| Power per litre | 72.5 Hp/l |
| Torque | 185 Nm @ 4500 rpm. 136.45 lb.-ft. @ 4500 rpm. |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | AODA |
| Engine displacement | 1999 cm3 121.99 cu. in. |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 87.5 mm 3.44 in. |
| Piston Stroke | 83.1 mm 3.27 in. |
| Compression ratio | 10.8:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine oil capacity | 4.3 l 4.54 US qt | 3.78 UK qt |
| Engine oil specification |  Log in to see. |
| Coolant | 6.3 l 6.66 US qt | 5.54 UK qt |
|
|
|
| Space, Volume and weights | |
| Kerb Weight | 1294 kg 2852.78 lbs. |
| Fuel tank capacity | 55 l 14.53 US gal | 12.1 UK gal |
| Dimensions | |
| Length | 4330 mm 170.47 in. |
| Width | 1820 mm 71.65 in. |
| Height | 1600 mm 62.99 in. |
| Wheelbase | 2640 mm 103.94 in. |
| Minimum turning circle (turning diameter) | 10.7 m 35.1 ft. |
| Drivetrain, brakes and suspension specs | |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front brakes | Disc |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 205/55 R16 |
| Wheel rims size | 16 |
