Specifications: Ford C-MAX II 1.6 Duratec Ti-VCT (105 Hp) 2010, 2011, 2012, 2013, 2014

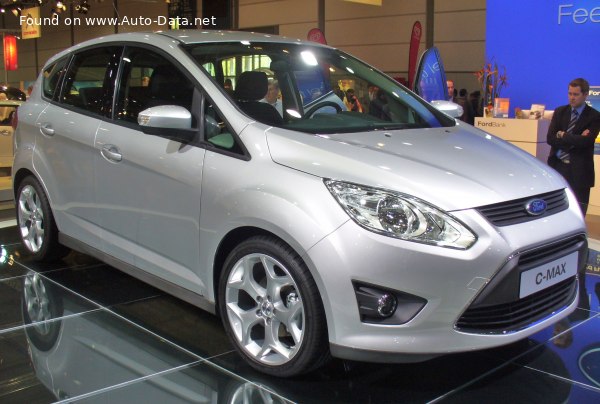

2011 Ford C-MAX II - Photo 1

Ford C-MAX II 1.6 Duratec Ti-VCT (105 Hp) – Full specifications
General information
Brand Ford
Model C-MAX
Generation C-MAX II
Modification (Engine) 1.6 Duratec Ti-VCT (105 Hp)
Start of production 2010 year
End of production 2014 year
Powertrain Architecture Internal Combustion engine
Body type MPV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 8.7 l/100 km
27 US mpg
32.5 UK mpg
11.5 km/l
Fuel consumption (economy) – extra urban 5.3 l/100 km
44.4 US mpg
53.3 UK mpg
18.9 km/l
Fuel consumption (economy) – combined 6.6 l/100 km
35.6 US mpg
42.8 UK mpg
15.2 km/l
CO2 emissions 154 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 12.6 sec
Acceleration 0 – 62 mph 12.6 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 12 sec
Maximum speed 180 km/h
111.85 mph
Emission standard Euro 5
Weight-to-power ratio 13.1 kg/Hp, 76.4 Hp/tonne
Weight-to-torque ratio 9.2 kg/Nm, 109.2 Nm/tonne
Engine specs
Power 105 Hp @ 6000 rpm.
Power per litre 65.8 Hp/l
Torque 150 Nm @ 4000-4500 rpm.
110.63 lb.-ft. @ 4000-4500 rpm.
Engine layout Front, Transverse
Engine Model/Code IQDB
Engine displacement 1596 cm3
97.39 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 79 mm
3.11 in.
Piston Stroke 81.4 mm
3.2 in.
Compression ratio 11:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 4.1 l
4.33 US qt | 3.61 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.8 l
6.13 US qt | 5.1 UK qt

Space, Volume and weights
Kerb Weight 1374 kg
3029.15 lbs.
Max. weight 1860 kg
4100.6 lbs.
Max load 486 kg
1071.45 lbs.
Trunk (boot) space – minimum 432 l
15.26 cu. ft.
Trunk (boot) space – maximum 1723 l
60.85 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Dimensions
Length 4380 mm
172.44 in.
Width 1828 mm
71.97 in.
Width with mirrors folded 1858 mm
73.15 in.
Width including mirrors 2067 mm
81.38 in.
Height 1626 mm
64.02 in.
Wheelbase 2648 mm
104.25 in.
Front track 1544-1559 mm
60.79 – 61.38 in.
Rear (Back) track 1554-1569 mm
61.18 – 61.77 in.
Minimum turning circle (turning diameter) 10.7 m
35.1 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/55 R16; 215/55 R16
Wheel rims size 6.5 J x 16; 7.0 J x 16
