Specifications: Ford EcoSport I 2.0 Duratec (145 Hp) 2003, 2004, 2005, 2006

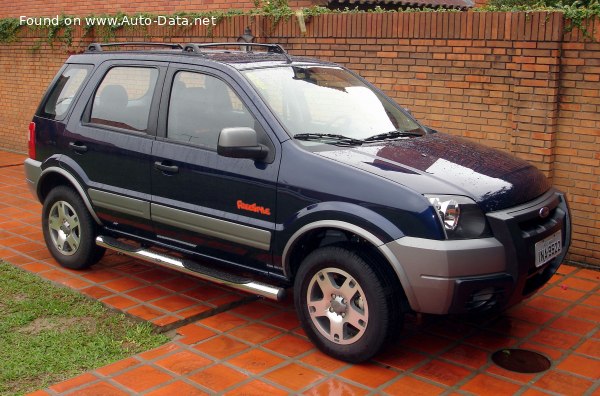

2004 Ford EcoSport I - Photo 1

Ford EcoSport I 2.0 Duratec (145 Hp) – Full specifications
General information
Brand Ford
Model EcoSport
Generation EcoSport I
Modification (Engine) 2.0 Duratec (145 Hp)
Start of production 2003 year
End of production 2006 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 8.4 kg/Hp, 118.9 Hp/tonne
Weight-to-torque ratio 6.5 kg/Nm, 153.3 Nm/tonne
Engine specs
Power 145 Hp @ 6000 rpm.
Power per litre 72.5 Hp/l
Torque 187 Nm @ 4500 rpm.
137.92 lb.-ft. @ 4500 rpm.
Maximum engine speed 6500 rpm.
Engine layout Front, Transverse
Engine Model/Code DURATEC HE
Engine displacement 1999 cm3
121.99 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 87.5 mm
3.44 in.
Piston Stroke 83.1 mm
3.27 in.
Compression ratio 10:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 4.3 l
4.54 US qt | 3.78 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.2 l
6.55 US qt | 5.46 UK qt

Space, Volume and weights
Kerb Weight 1220 kg
2689.64 lbs.
Max. weight 1670 kg
3681.72 lbs.
Max load 450 kg
992.08 lbs.
Trunk (boot) space – minimum 296 l
10.45 cu. ft.
Trunk (boot) space – maximum 363 l
12.82 cu. ft.
Fuel tank capacity 45 l
11.89 US gal | 9.9 UK gal
Permitted trailer load with brakes (12%) 400 kg
881.85 lbs.
Dimensions
Length 4228 mm
166.46 in.
Width 1734 mm
68.27 in.
Height 1679 mm
66.1 in.
Wheelbase 2490 mm
98.03 in.
Front track 1484 mm
58.43 in.
Rear (Back) track 1446 mm
56.93 in.
Minimum turning circle (turning diameter) 10 m
32.81 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Hydraulic elements, Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Hydraulic elements, Coil spring, Torsion
Front brakes Disc
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 205/65 R15
Wheel rims size 6J x 15
