Specifications: Ford EcoSport II 1.5 Duratec Ti-VCT (112 Hp) 2013, 2014, 2015, 2016, 2017

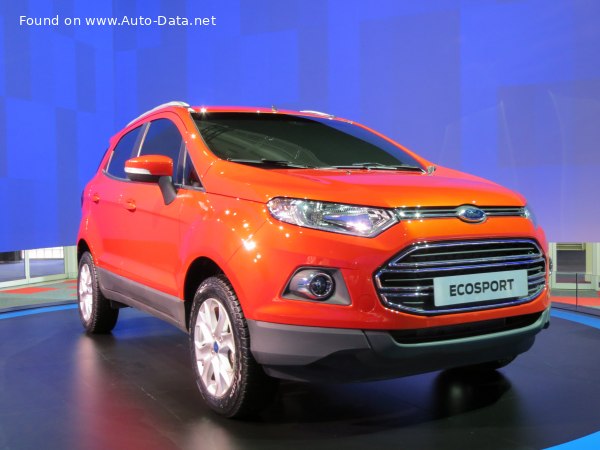

2013 Ford EcoSport II - Photo 1

Ford EcoSport II 1.5 Duratec Ti-VCT (112 Hp) – Full specifications
General information
Brand Ford
Model EcoSport
Generation EcoSport II
Modification (Engine) 1.5 Duratec Ti-VCT (112 Hp)
Start of production 2013 year
End of production 2017 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 8.1 l/100 km
29 US mpg
34.9 UK mpg
12.3 km/l
Fuel consumption (economy) – extra urban 5.2 l/100 km
45.2 US mpg
54.3 UK mpg
19.2 km/l
Fuel consumption (economy) – combined 6.3 l/100 km
37.3 US mpg
44.8 UK mpg
15.9 km/l
CO2 emissions 149 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 13.3 sec
Acceleration 0 – 62 mph 13.3 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 12.6 sec
Maximum speed 172 km/h
106.88 mph
Emission standard Euro 5
Weight-to-power ratio 12.1 kg/Hp, 82.9 Hp/tonne
Weight-to-torque ratio 9.7 kg/Nm, 103.6 Nm/tonne
Engine specs
Power 112 Hp @ 6300 rpm.
Power per litre 74.7 Hp/l
Torque 140 Nm @ 4400 rpm.
103.26 lb.-ft. @ 4400 rpm.
Engine layout Front, Transverse
Engine displacement 1499 cm3
91.47 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 79 mm
3.11 in.
Piston Stroke 76.4 mm
3.01 in.
Compression ratio 11:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 4.1 l
4.33 US qt | 3.61 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.5 l
5.81 US qt | 4.84 UK qt

Space, Volume and weights
Kerb Weight 1351 kg
2978.45 lbs.
Max. weight 1700 kg
3747.86 lbs.
Max load 349 kg
769.41 lbs.
Trunk (boot) space – minimum 333 l
11.76 cu. ft.
Trunk (boot) space – maximum 1238 l
43.72 cu. ft.
Fuel tank capacity 52 l
13.74 US gal | 11.44 UK gal
Dimensions
Length 4273 mm
168.23 in.
Width 1765 mm
69.49 in.
Height 1648 mm
64.88 in.
Wheelbase 2519 mm
99.17 in.
Front track 1529 mm
60.2 in.
Rear (Back) track 1532 mm
60.31 in.
Minimum turning circle (turning diameter) 10.6 m
34.78 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Semi-independent, coil spring
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 205/60 R16 92H; 205/50 R17 93W
Wheel rims size 16; 17
