Specifications: Ford Edge I (facelift 2011) 3.5 V6 (288 Hp) Automatic 2011, 2012, 2013, 2014

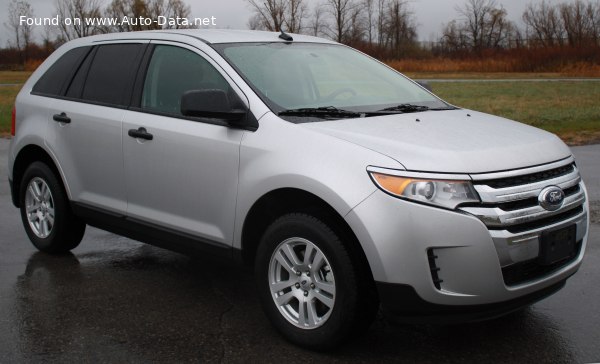

2011 Ford Edge I (facelift 2011) - Photo 1

Ford Edge I (facelift 2011) 3.5 V6 (288 Hp) Automatic – Full specifications
General information
Brand Ford
Model Edge
Generation Edge I (facelift 2011)
Modification (Engine) 3.5 V6 (288 Hp) Automatic
Start of production 2011 year
End of production 2014 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 12.4 l/100 km
19 US mpg
22.8 UK mpg
8.1 km/l
Fuel consumption (economy) – extra urban 8.7 l/100 km
27 US mpg
32.5 UK mpg
11.5 km/l
Fuel consumption (economy) – combined 10.7 l/100 km
22 US mpg
26.4 UK mpg
9.3 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 8 sec
Acceleration 0 – 62 mph 8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.6 sec
Maximum speed 179 km/h
111.23 mph
Weight-to-power ratio 6.7 kg/Hp, 148.8 Hp/tonne
Weight-to-torque ratio 5.6 kg/Nm, 177.3 Nm/tonne
Engine specs
Power 288 Hp @ 6500 rpm.
Power per litre 82.4 Hp/l
Torque 343 Nm @ 4000 rpm.
252.98 lb.-ft. @ 4000 rpm.
Engine layout Front, Transverse
Engine displacement 3496 cm3
213.34 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 92.5 mm
3.64 in.
Piston Stroke 86.7 mm
3.41 in.
Compression ratio 10.3:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 5.7 l
6.02 US qt | 5.02 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 11.1 l
11.73 US qt | 9.77 UK qt

Space, Volume and weights
Kerb Weight 1935 kg
4265.94 lbs.
Max. weight 2347 kg
5174.25 lbs.
Max load 412 kg
908.3 lbs.
Trunk (boot) space – minimum 911 l
32.17 cu. ft.
Trunk (boot) space – maximum 1980 l
69.92 cu. ft.
Fuel tank capacity 68 l
17.96 US gal | 14.96 UK gal
Dimensions
Length 4679 mm
184.21 in.
Width 1930 mm
75.98 in.
Height 1702 mm
67.01 in.
Wheelbase 2825 mm
111.22 in.
Front track 1661 mm
65.39 in.
Rear (Back) track 1656 mm
65.2 in.
Ride height (ground clearance) 200 mm
7.87 in.
Drag coefficient (Cd) 0.32
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Power steering Hydraulic Steering
Tires size 235/65 R17; 245/60 R18; 245/50 R20
Wheel rims size 7.5J x 17; 7.5J x 18; 7.5J x 20
