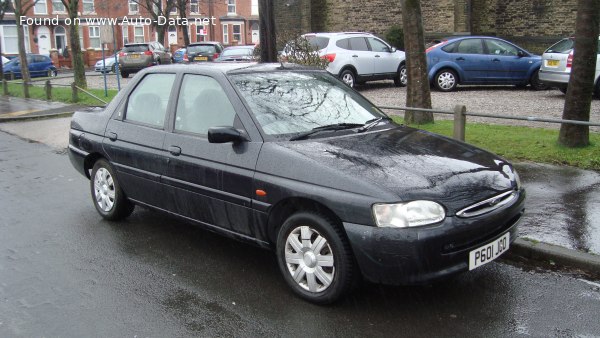

1995 Ford Escort VII (GAL,AAL,ABL) - Photo 1

Ford Escort VII (GAL,AAL,ABL) 1.6 i 16V (90 Hp) – Full specifications

General information
Brand Ford
Model Escort
Generation Escort VII (GAL,AAL,ABL)
Modification (Engine) 1.6 i 16V (90 Hp)
Start of production 1995 year
End of production 2000 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – combined 7.4 l/100 km
31.8 US mpg
38.2 UK mpg
13.5 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 12.5 sec
Acceleration 0 – 62 mph 12.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 11.9 sec
Maximum speed 177 km/h
109.98 mph
Weight-to-power ratio 12.3 kg/Hp, 81.4 Hp/tonne
Weight-to-torque ratio 8.2 kg/Nm, 121.3 Nm/tonne
Engine specs
Power 90 Hp @ 5500 rpm.
Power per litre 56.4 Hp/l
Torque 134 Nm @ 3000 rpm.
98.83 lb.-ft. @ 3000 rpm.
Engine layout Front, Transverse
Engine Model/Code L1E, L1K
Engine displacement 1597 cm3
97.45 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 76 mm
2.99 in.
Piston Stroke 88 mm
3.46 in.
Compression ratio 10.3:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 4.25 l
4.49 US qt | 3.74 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7 l
7.4 US qt | 6.16 UK qt

Space, Volume and weights
Kerb Weight 1105 kg
2436.11 lbs.
Max. weight 1650 kg
3637.63 lbs.
Max load 545 kg
1201.52 lbs.
Trunk (boot) space – minimum 490 l
17.3 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Dimensions
Length 4293 mm
169.02 in.
Width 1700 mm
66.93 in.
Height 1394 mm
54.88 in.
Wheelbase 2525 mm
99.41 in.
Front track 1440 mm
56.69 in.
Rear (Back) track 1455 mm
57.28 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Wishbone
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 175/70 R13 T
