Specifications: Ford Expedition I (U173) 5.4 i V8 16V XLT (232 Hp) 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003

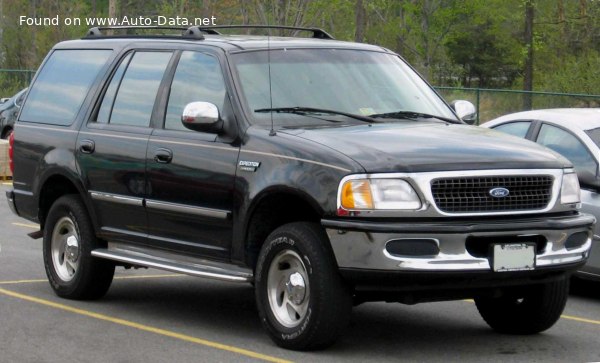

1997 Ford Expedition I (U173) - Photo 1

Ford Expedition I (U173) 5.4 i V8 16V XLT (232 Hp) – Full specifications
General information
Brand Ford
Model Expedition
Generation Expedition I (U173)
Modification (Engine) 5.4 i V8 16V XLT (232 Hp)
Start of production 1996 year
End of production 2003 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 18.1 l/100 km
13 US mpg
15.6 UK mpg
5.5 km/l
Fuel consumption (economy) – extra urban 13.1 l/100 km
18 US mpg
21.6 UK mpg
7.6 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 10 sec
Acceleration 0 – 62 mph 10 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.5 sec
Maximum speed 180 km/h
111.85 mph
Engine specs
Power 232 Hp @ 4250 rpm.
Power per litre 43 Hp/l
Torque 441 Nm @ 3000 rpm.
325.26 lb.-ft. @ 3000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code Triton
Engine displacement 5398 cm3
329.41 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 90.2 mm
3.55 in.
Piston Stroke 105.7 mm
4.16 in.
Compression ratio 9:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain OHC
Engine oil capacity 5.7 l
6.02 US qt | 5.02 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 19.7 l
20.82 US qt | 17.33 UK qt

Space, Volume and weights
Trunk (boot) space – maximum 3350 l
118.3 cu. ft.
Fuel tank capacity 98 l
25.89 US gal | 21.56 UK gal
Dimensions
Length 5200 mm
204.72 in.
Width 2000 mm
78.74 in.
Height 1900 mm
74.8 in.
Wheelbase 3020 mm
118.9 in.
Front track 1660 mm
65.35 in.
Rear (Back) track 1660 mm
65.35 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Torsion
Rear suspension Rigid axle suspension
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Power steering Hydraulic Steering
Tires size 255/70 R16
