| General information | |
|---|---|
| Brand | Ford |

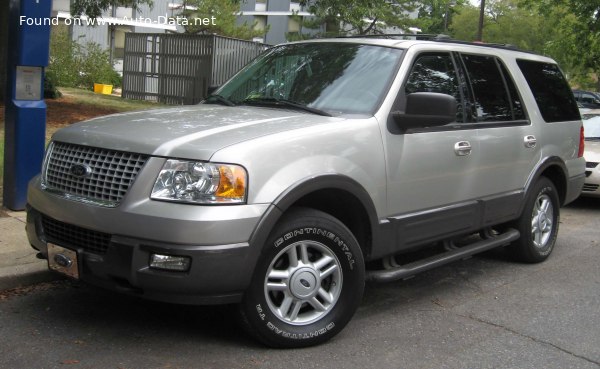

| Model | Expedition |
| Generation | Expedition II |
| Modification (Engine) | 4.6 i V8 16V 4WD (235 Hp) |
| Start of production | 2003 year |
| End of production | 2004 year |
| Powertrain Architecture | Internal Combustion engine |
| Body type | SUV |
| Seats | 8 |
| Doors | 5 |
| Performance specs | |
| Fuel consumption (economy) – urban | 16.8 l/100 km 14 US mpg 16.8 UK mpg 6 km/l |
| Fuel consumption (economy) – extra urban | 13.1 l/100 km 18 US mpg 21.6 UK mpg 7.6 km/l |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 10.5 sec |
| Acceleration 0 – 62 mph | 10.5 sec |
| Acceleration 0 – 60 mph (Calculated by Auto-Data.net) | 10 sec |
| Maximum speed | 170 km/h 105.63 mph |
| Weight-to-power ratio | 11 kg/Hp, 90.7 Hp/tonne |
| Weight-to-torque ratio | 6.6 kg/Nm, 152.1 Nm/tonne |
| Engine specs | |
| Power | 235 Hp @ 4750 rpm. |
| Power per litre | 51.1 Hp/l |
| Torque | 394 Nm @ 3450 rpm. 290.6 lb.-ft. @ 3450 rpm. |
| Engine layout | Front, Longitudinal |
| Engine displacement | 4601 cm3 280.77 cu. in. |
| Number of cylinders | 8 |
| Engine configuration | V-engine |
| Cylinder Bore | 90.2 mm 3.55 in. |
| Piston Stroke | 90 mm 3.54 in. |
| Compression ratio | 9.4:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Engine oil capacity | 5.7 l 6.02 US qt | 5.02 UK qt |
| Engine oil specification |  Log in to see. |
| Coolant | 16.1 l 17.01 US qt | 14.17 UK qt |
|
|
|
| Space, Volume and weights | |
| Kerb Weight | 2590 kg 5709.97 lbs. |
| Max. weight | 3130 kg 6900.47 lbs. |
| Max load | 540 kg 1190.5 lbs. |
| Trunk (boot) space – minimum | 571 l 20.16 cu. ft. |
| Trunk (boot) space – maximum | 1723 l 60.85 cu. ft. |
| Fuel tank capacity | 106 l 28 US gal | 23.32 UK gal |
| Dimensions | |
| Length | 5228 mm 205.83 in. |
| Width | 2000 mm 78.74 in. |
| Height | 1971 mm 77.6 in. |
| Wheelbase | 3023 mm 119.02 in. |
| Front track | 1702 mm 67.01 in. |
| Rear (Back) track | 1709 mm 67.28 in. |
| Drivetrain, brakes and suspension specs | |
| Drive wheel | All wheel drive (4×4) |
| Number of gears and type of gearbox | 4 gears, automatic transmission |
| Front suspension | Double wishbone |
| Rear suspension | Double wishbone |
| Front brakes | Ventilated discs |
| Rear brakes | Ventilated discs |
| Assisting systems | ABS (Anti-lock braking system) |
| Tires size | 265/70 R17 |
