Specifications: Ford Expedition III (U324) 5.4 V8 (310 Hp) 4×4 Flex Fuel Automatic 2008, 2009, 2010, 2011, 2012, 2013, 2014

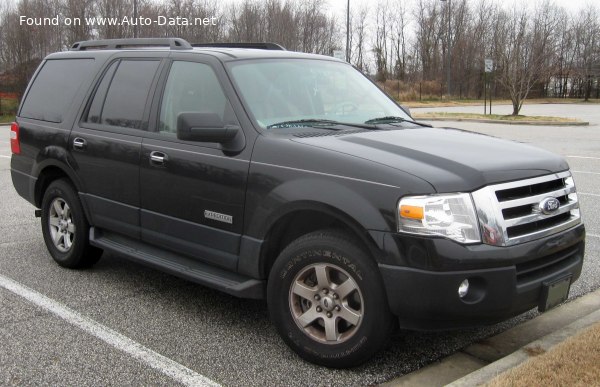

2007 Ford Expedition III (U324) - Photo 1

Ford Expedition III (U324) 5.4 V8 (310 Hp) 4×4 Flex Fuel Automatic – Full specifications
General information
Brand Ford
Model Expedition
Generation Expedition III (U324)
Modification (Engine) 5.4 V8 (310 Hp) 4×4 Flex Fuel Automatic
Start of production July, 2008 year
End of production August, 2014 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5-8
Doors 5
Performance specs
Fuel consumption (economy) – urban (EPA) 18.1 l/100 km
13 US mpg
15.6 UK mpg
5.5 km/l
Fuel consumption (economy) – extra urban (EPA) 13.1 l/100 km
18 US mpg
21.6 UK mpg
7.6 km/l
Fuel consumption (economy) – combined (EPA) 15.7 l/100 km
15 US mpg
18 UK mpg
6.4 km/l
Fuel Type Petrol / Ethanol – E85
Weight-to-power ratio 8.5 kg/Hp, 118.2 Hp/tonne
Weight-to-torque ratio 5.3 kg/Nm, 188.8 Nm/tonne
Engine specs
Power 310 Hp @ 5100 rpm.
Power per litre 57.3 Hp/l
Torque 495 Nm @ 3600 rpm.
365.09 lb.-ft. @ 3600 rpm.
Engine layout Front, Longitudinal
Engine Model/Code Triton
Engine displacement 5408 cm3
330.02 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 90.2 mm
3.55 in.
Piston Stroke 105.8 mm
4.17 in.
Compression ratio 9.8:1
Number of valves per cylinder 3
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain SOHC, VCT
Engine oil capacity 6.6 l
6.97 US qt | 5.81 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 15.5 l
16.38 US qt | 13.64 UK qt

Space, Volume and weights
Kerb Weight 2622 kg
5780.52 lbs.
Trunk (boot) space – minimum 527 l
18.61 cu. ft.
Trunk (boot) space – maximum 3067 l
108.31 cu. ft.
Fuel tank capacity 106 l
28 US gal | 23.32 UK gal
Permitted trailer load with brakes (12%) 4082 kg
8999.27 lbs.
Dimensions
Length 5245 mm
206.5 in.
Width 2002 mm
78.82 in.
Width with mirrors folded 2024 mm
79.69 in.
Width including mirrors 2332 mm
91.81 in.
Height 1961 mm
77.2 in.
Wheelbase 3023 mm
119.02 in.
Front track 1702 mm
67.01 in.
Rear (Back) track 1707 mm
67.2 in.
Front overhang 996 mm
39.21 in.
Rear overhang 1227 mm
48.31 in.
Ride height (ground clearance) 221 mm
8.7 in.
Approach angle 22.6°
Departure angle 21.5°
Ramp-over (brakeover) angle 18.3°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Coil spring, Double wishbone, Transverse stabilizer
Rear suspension Independent multi-link spring suspension with stabilizer, Air Suspension – Optional
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 255/70 R18; 275/55 R20
Wheel rims size 18; 20
