Specifications: Ford Expedition V 3.5 V6 (400 Hp) SelectShift 2024, 2025

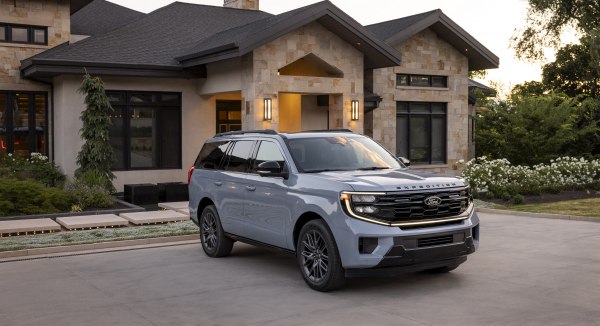

2025 Ford Expedition V - Photo 1

Ford Expedition V 3.5 V6 (400 Hp) SelectShift – Full specifications
General information
Brand Ford
Model Expedition
Generation Expedition V
Modification (Engine) 3.5 V6 (400 Hp) SelectShift
Start of production October, 2024 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 7-8
Doors 5
Performance specs
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 6.1 kg/Hp, 163.2 Hp/tonne
Weight-to-torque ratio 3.8 kg/Nm, 265.6 Nm/tonne
Engine specs
Power 400 Hp @ 5200 rpm.
Power per litre 114.4 Hp/l
Torque 651 Nm @ 3300 rpm.
480.15 lb.-ft. @ 3300 rpm.
Maximum engine speed 6500 rpm.
Engine layout Front, Longitudinal
Engine Model/Code EcoBoost
Engine displacement 3497 cm3
213.4 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 92.5 mm
3.64 in.
Piston Stroke 86.6 mm
3.41 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection and Multi-port manifold injection
Engine aspiration Twin-Turbo, Intercooler
Valvetrain DOHC, Ti-VCT
Engine oil capacity 5.7 l
6.02 US qt | 5.02 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 14.7 l
15.53 US qt | 12.93 UK qt
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 2451 kg
5403.53 lbs.
Trunk (boot) space – minimum 612 l
21.61 cu. ft.
Trunk (boot) space – maximum 3072 l
108.49 cu. ft.
Fuel tank capacity 88 l
23.25 US gal | 19.36 UK gal
Permitted trailer load with brakes (12%) 2767 kg
6100.19 lbs.
Dimensions
Length 5331 mm
209.88 in.
Width 2032 mm
80 in.
Width with mirrors folded 2149 mm
84.61 in.
Width including mirrors 2403 mm
94.61 in.
Height 1984 mm
78.11 in.
Wheelbase 3112 mm
122.52 in.
Front track 1730 mm
68.11 in.
Rear (Back) track 1722 mm
67.8 in.
Front overhang 968 mm
38.11 in.
Rear overhang 1252 mm
49.29 in.
Ride height (ground clearance) 221 mm
8.7 in.
Approach angle 21.1°
Departure angle 23.5°
Ramp-over (brakeover) angle 19.3°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 10 gears, automatic transmission SelectShift
Front suspension Coil spring, Double wishbone, Transverse stabilizer
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 265/70 R18; 275/70 R18; 275/60 R20; 275/50 R22; 285/40 R24
Wheel rims size 18; 20; 22; 24
