Specifications: Ford F-250 Super Duty III Crew Cab Long box 6.7 V8 Power Stroke TD (400 Hp) 4×4 Automatic 2011, 2012, 2013, 2014, 2015, 2016

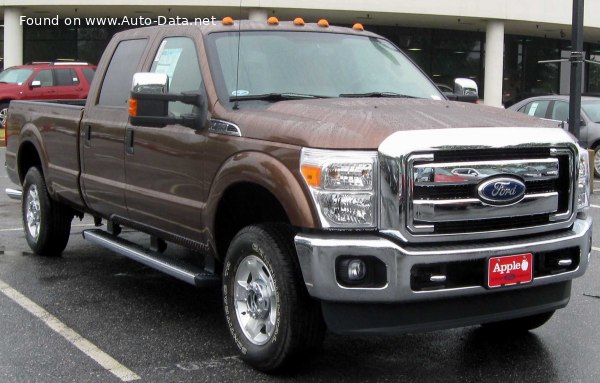

2011 Ford F-250 Super Duty III Crew Cab Long box - Photo 1

Ford F-250 Super Duty III Crew Cab Long box 6.7 V8 Power Stroke TD (400 Hp) 4×4 Automatic – Full specifications
General information
Brand Ford
Model F-250 Super Duty
Generation F-250 Super Duty III Crew Cab Long box
Modification (Engine) 6.7 V8 Power Stroke TD (400 Hp) 4×4 Automatic
Start of production 2011 year
End of production 2016 year
Powertrain Architecture Internal Combustion engine
Body type Pick-up
Seats 5
Doors 4
Performance specs
Fuel Type Diesel
Weight-to-power ratio 7.7 kg/Hp, 129.1 Hp/tonne
Weight-to-torque ratio 2.9 kg/Nm, 350.2 Nm/tonne
Engine specs
Power 400 Hp @ 2800 rpm.
Power per litre 60.1 Hp/l
Torque 1085 Nm @ 1600 rpm.
800.25 lb.-ft. @ 1600 rpm.
Engine layout Front, Longitudinal
Engine displacement 6653 cm3
405.99 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 99.06 mm
3.9 in.
Piston Stroke 107.95 mm
4.25 in.
Compression ratio 16.2:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain OHV
Engine oil capacity 12.4 l
13.1 US qt | 10.91 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 27.8 l
29.38 US qt | 24.46 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 3098 kg
6829.92 lbs.
Max. weight 4536 kg
10000.17 lbs.
Max load 1438 kg
3170.25 lbs.
Trunk (boot) space – maximum 2189 l
77.3 cu. ft.
Fuel tank capacity 142 l
37.51 US gal | 31.24 UK gal
Permitted trailer load with brakes (12%) 6895 kg
15200.87 lbs.
Dimensions
Length 6680 mm
262.99 in.
Width 2029 mm
79.88 in.
Width with mirrors folded 2664 mm
104.88 in.
Width including mirrors 2794 mm
110 in.
Height 2027 mm
79.8 in.
Wheelbase 4379 mm
172.4 in.
Front overhang 968 mm
38.11 in.
Rear overhang 1331 mm
52.4 in.
Ride height (ground clearance) 206 mm
8.11 in.
Approach angle 20.6°
Departure angle 17.9°
Ramp-over (brakeover) angle 17.3°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, automatic transmission TorqShift
Front suspension Dependent spring suspension with anti-roll bar
Rear suspension Rigid axle suspension, Leaf spring
Front brakes Ventilated discs, 346.96 mm
Rear brakes Ventilated discs, 340.11 mm
Assisting systems ABS (Anti-lock braking system)
Power steering Hydraulic Steering
Tires size 265/70 R17; 275/65 R18; 275/70 R18
