Specifications: Ford F-250 Super Duty IV (facelift 2020) Crew Cab Long box 6.2 V8 (385 Hp) 4×4 Automatic 2020, 2021, 2022

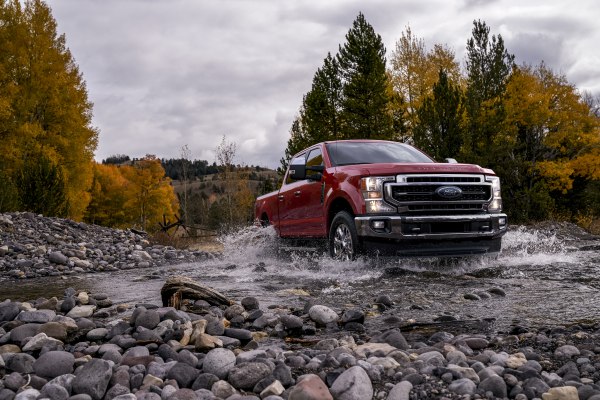

2020 Ford F-250 Super Duty IV (facelift 2020) Crew Cab Long box - Photo 1

Ford F-250 Super Duty IV (facelift 2020) Crew Cab Long box 6.2 V8 (385 Hp) 4×4 Automatic – Full specifications
General information
Brand Ford
Model F-250 Super Duty
Generation F-250 Super Duty IV (facelift 2020) Crew Cab Long box
Modification (Engine) 6.2 V8 (385 Hp) 4×4 Automatic
Start of production 2020 year
End of production 2022 year
Powertrain Architecture Internal Combustion engine
Body type Pick-up
Seats 6
Doors 4
Performance specs
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 7.9 kg/Hp, 126.4 Hp/tonne
Weight-to-torque ratio 5.2 kg/Nm, 191.3 Nm/tonne
Engine specs
Power 385 Hp @ 5750 rpm.
Power per litre 62 Hp/l
Torque 583 Nm @ 3800 rpm.
430 lb.-ft. @ 3800 rpm.
Engine layout Front, Longitudinal
Engine displacement 6211 cm3
379.02 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 102.11 mm
4.02 in.
Piston Stroke 95 mm
3.74 in.
Compression ratio 9.8:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain OHC
Engine oil capacity 6.6 l
6.97 US qt | 5.81 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 23.3 l
24.62 US qt | 20.5 UK qt

Space, Volume and weights
Kerb Weight 3047 kg
6717.49 lbs.
Trunk (boot) space – maximum 2223 l
78.5 cu. ft.
Fuel tank capacity 182 l
48.08 US gal | 40.03 UK gal
Permitted trailer load with brakes (12%) 5670-6804 kg
12500.21 – 15000.25 lbs.
Dimensions
Length 6761 mm
266.18 in.
Width 2438 mm
95.98 in.
Width including mirrors 2690 mm
105.91 in.
Height 2065 mm
81.3 in.
Wheelbase 4470 mm
175.98 in.
Front track 1735 mm
68.31 in.
Rear (Back) track 1707 mm
67.2 in.
Front overhang 970 mm
38.19 in.
Rear overhang 1321 mm
52.01 in.
Ride height (ground clearance) 216 mm
8.5 in.
Approach angle 17.4°
Departure angle 20.8°
Ramp-over (brakeover) angle 19.3°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, automatic transmission TorqShift
Front suspension Dependent spring suspension with anti-roll bar
Rear suspension Rigid axle suspension, Leaf spring
Front brakes Ventilated discs, 363 mm
Rear brakes Ventilated discs, 363 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Cone worm with recirculation balls
Power steering Hydraulic Steering
Tires size 275/70 R18
