Specifications: Ford F-250 Super Duty IV (facelift 2020) Crew Cab Short box 6.7d V8 (475 Hp) 4×4 Automatic 2020, 2021, 2022

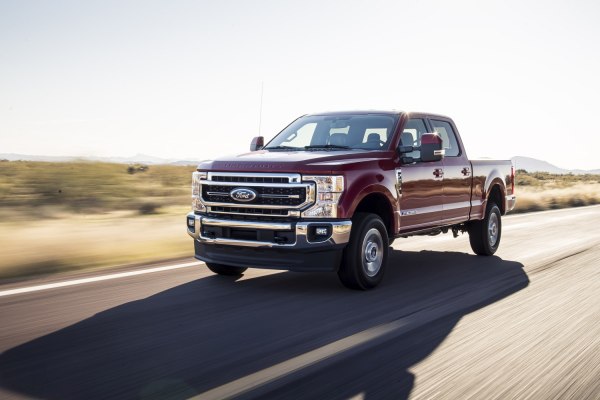

2020 Ford F-250 Super Duty IV (facelift 2020) Crew Cab Short box - Photo 1

Ford F-250 Super Duty IV (facelift 2020) Crew Cab Short box 6.7d V8 (475 Hp) 4×4 Automatic – Full specifications
General information
Brand Ford
Model F-250 Super Duty
Generation F-250 Super Duty IV (facelift 2020) Crew Cab Short box
Modification (Engine) 6.7d V8 (475 Hp) 4×4 Automatic
Start of production 2020 year
End of production 2022 year
Powertrain Architecture Internal Combustion engine
Body type Pick-up
Seats 6
Doors 4
Performance specs
Fuel Type Diesel
Weight-to-power ratio 6.9 kg/Hp, 144.2 Hp/tonne
Weight-to-torque ratio 2.3 kg/Nm, 432.3 Nm/tonne
Engine specs
Power 475 Hp @ 2800 rpm.
Power per litre 71.4 Hp/l
Torque 1424 Nm @ 1600 rpm.
1050.29 lb.-ft. @ 1600 rpm.
Engine layout Front, Longitudinal
Engine displacement 6653 cm3
405.99 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 99.1 mm
3.9 in.
Piston Stroke 108 mm
4.25 in.
Compression ratio 15.8:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain OHV
Engine oil capacity 12.3 l
13 US qt | 10.82 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 30 l
31.7 US qt | 26.4 UK qt

Space, Volume and weights
Kerb Weight 3294 kg
7262.03 lbs.
Trunk (boot) space – maximum 1852 l
65.4 cu. ft.
Fuel tank capacity 129 l
34.08 US gal | 28.38 UK gal
Dimensions
Length 6350 mm
250 in.
Width 2032 mm
80 in.
Width including mirrors 2690 mm
105.91 in.
Height 2070 mm
81.5 in.
Wheelbase 4059 mm
159.8 in.
Front track 1735 mm
68.31 in.
Rear (Back) track 1707 mm
67.2 in.
Front overhang 970 mm
38.19 in.
Rear overhang 1321 mm
52.01 in.
Ride height (ground clearance) 216 mm
8.5 in.
Approach angle 16.9°
Departure angle 21.1°
Ramp-over (brakeover) angle 21.2°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 10 gears, automatic transmission TorqShift
Front suspension Dependent spring suspension with anti-roll bar
Rear suspension Rigid axle suspension, Leaf spring
Front brakes Ventilated discs, 363 mm
Rear brakes Ventilated discs, 363 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Cone worm with recirculation balls
Power steering Hydraulic Steering
Tires size 275/70 R18
