Specifications: Ford F-350 Super Duty IV (facelift 2020) Super Cab Short box 6.2 V8 (385 Hp) 4×4 Automatic SRW 2020, 2021, 2022

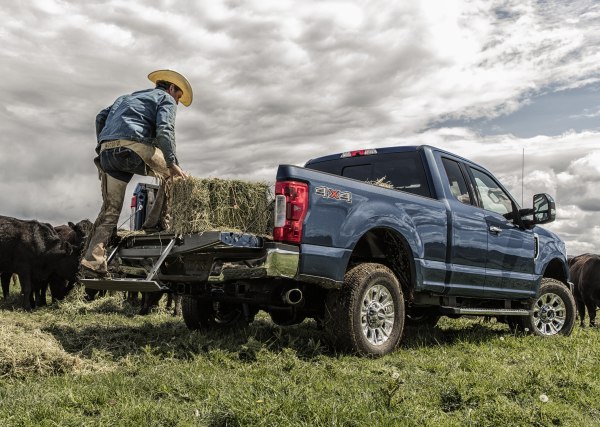

2020 Ford F-350 Super Duty IV (facelift 2020) Super Cab Short box - Photo 1

Ford F-350 Super Duty IV (facelift 2020) Super Cab Short box 6.2 V8 (385 Hp) 4×4 Automatic SRW – Full specifications
General information
Brand Ford
Model F-350 Super Duty
Generation F-350 Super Duty IV (facelift 2020) Super Cab Short box
Modification (Engine) 6.2 V8 (385 Hp) 4×4 Automatic SRW
Start of production 2020 year
End of production 2022 year
Powertrain Architecture Internal Combustion engine
Body type Pick-up
Seats 6
Doors 2
Performance specs
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 7.7 kg/Hp, 129.5 Hp/tonne
Weight-to-torque ratio 5.1 kg/Nm, 196 Nm/tonne
Engine specs
Power 385 Hp @ 5750 rpm.
Power per litre 62 Hp/l
Torque 583 Nm @ 3800 rpm.
430 lb.-ft. @ 3800 rpm.
Engine layout Front, Longitudinal
Engine displacement 6211 cm3
379.02 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 102.11 mm
4.02 in.
Piston Stroke 95 mm
3.74 in.
Compression ratio 9.8:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 6.6 l
6.97 US qt | 5.81 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 23.3 l
24.62 US qt | 20.5 UK qt

Space, Volume and weights
Kerb Weight 2974 kg
6556.55 lbs.
Trunk (boot) space – maximum 1852 l
65.4 cu. ft.
Fuel tank capacity 129 l
34.08 US gal | 28.38 UK gal
Permitted trailer load with brakes (12%) 5579-6804 kg
12299.59 – 15000.25 lbs.
Dimensions
Length 6050 mm
238.19 in.
Width 2032 mm
80 in.
Width including mirrors 2690 mm
105.91 in.
Height 2068 mm
81.42 in.
Wheelbase 3759 mm
147.99 in.
Front track 1735 mm
68.31 in.
Rear (Back) track 1707 mm
67.2 in.
Front overhang 970 mm
38.19 in.
Rear overhang 1321 mm
52.01 in.
Ride height (ground clearance) 216 mm
8.5 in.
Approach angle 16.8°
Departure angle 20.3°
Ramp-over (brakeover) angle 22.8°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 10 gears, automatic transmission TorqShift
Front suspension Dependent spring suspension with anti-roll bar
Rear suspension Rigid axle suspension, Leaf spring
Front brakes Ventilated discs, 363 mm
Rear brakes Ventilated discs, 363 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Cone worm with recirculation balls
Power steering Hydraulic Steering
Tires size 275/70 R18
