Specifications: Ford F-350 Super Duty IV Regular Cab Long box 6.7d V8 (450 Hp) Automatic SRW 2017, 2018, 2019

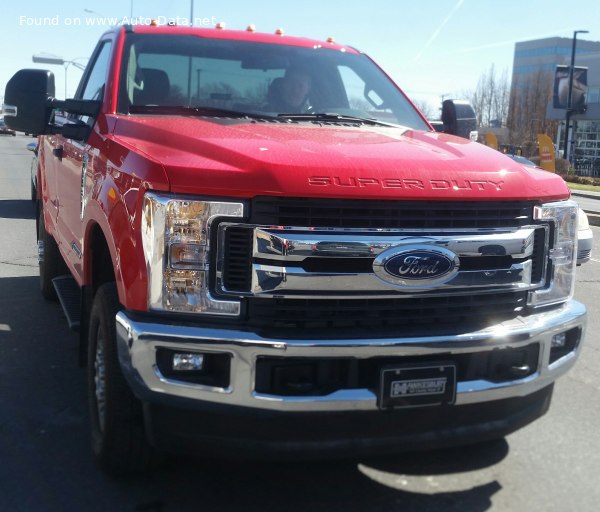

2018 Ford F-350 Super Duty IV Regular Cab Long box - Photo 1

Ford F-350 Super Duty IV Regular Cab Long box 6.7d V8 (450 Hp) Automatic SRW – Full specifications
General information
Brand Ford
Model F-350 Super Duty
Generation F-350 Super Duty IV Regular Cab Long box
Modification (Engine) 6.7d V8 (450 Hp) Automatic SRW
Start of production 2017 year
End of production 2019 year
Powertrain Architecture Internal Combustion engine
Body type Pick-up
Seats 3
Doors 2
Performance specs
Fuel Type Diesel
Weight-to-power ratio 6.7 kg/Hp, 149.1 Hp/tonne
Weight-to-torque ratio 2.4 kg/Nm, 419.8 Nm/tonne
Engine specs
Power 450 Hp @ 2800 rpm.
Power per litre 67.6 Hp/l
Torque 1267 Nm @ 1800 rpm.
934.49 lb.-ft. @ 1800 rpm.
Engine layout Front, Longitudinal
Engine displacement 6653 cm3
405.99 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 99.06 mm
3.9 in.
Piston Stroke 107.95 mm
4.25 in.
Compression ratio 16.2:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain OHV
Engine oil capacity 12.3 l
13 US qt | 10.82 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 33.2 l
35.08 US qt | 29.21 UK qt

Space, Volume and weights
Kerb Weight 3018-3044 kg
6653.55 – 6710.87 lbs.
Trunk (boot) space – minimum 2222 l
78.47 cu. ft.
Fuel tank capacity 110 l
29.06 US gal | 24.2 UK gal
Permitted trailer load with brakes (12%) 9752 kg
21499.48 lbs.
Dimensions
Length 5888 mm
231.81 in.
Width 2032 mm
80 in.
Width including mirrors 2690 mm
105.91 in.
Height 1976 mm
77.8 in.
Wheelbase 3597 mm
141.61 in.
Front track 1735 mm
68.31 in.
Rear (Back) track 1707 mm
67.2 in.
Front overhang 970 mm
38.19 in.
Rear overhang 1321 mm
52.01 in.
Ride height (ground clearance) 216 mm
8.5 in.
Approach angle 17.5°
Departure angle 18.7°
Ramp-over (brakeover) angle 20.0°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission TorqShift
Front suspension Independent coil spring, Trailing arm
Rear suspension Rigid axle suspension, Leaf spring
Front brakes Ventilated discs, 363 mm
Rear brakes Ventilated discs, 363 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Cone worm with recirculation balls
Power steering Hydraulic Steering
Tires size 245/75 R17
Wheel rims size 17
