Specifications: Ford F-350 Super Duty IV Super Cab Long box 6.7d V8 (450 Hp) 4×4 Automatic DRW 2017, 2018, 2019

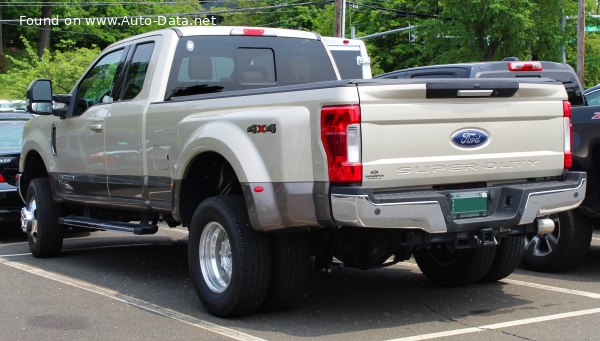

2018 Ford F-350 Super Duty IV Super Cab Long box - Photo 1

Ford F-350 Super Duty IV Super Cab Long box 6.7d V8 (450 Hp) 4×4 Automatic DRW – Full specifications
General information
Brand Ford
Model F-350 Super Duty
Generation F-350 Super Duty IV Super Cab Long box
Modification (Engine) 6.7d V8 (450 Hp) 4×4 Automatic DRW
Start of production 2017 year
End of production 2019 year
Powertrain Architecture Internal Combustion engine
Body type Pick-up
Seats 6
Doors 2
Performance specs
Fuel Type Diesel
Weight-to-power ratio 7.5 kg/Hp, 133.2 Hp/tonne
Weight-to-torque ratio 2.7 kg/Nm, 375.1 Nm/tonne
Engine specs
Power 450 Hp @ 2800 rpm.
Power per litre 67.6 Hp/l
Torque 1267 Nm @ 1800 rpm.
934.49 lb.-ft. @ 1800 rpm.
Engine layout Front, Longitudinal
Engine displacement 6653 cm3
405.99 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 99.06 mm
3.9 in.
Piston Stroke 107.95 mm
4.25 in.
Compression ratio 16.2:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain OHV
Engine oil capacity 12.3 l
13 US qt | 10.82 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 33.2 l
35.08 US qt | 29.21 UK qt

Space, Volume and weights
Kerb Weight 3378-3567 kg
7447.22 – 7863.89 lbs.
Trunk (boot) space – minimum 2222 l
78.47 cu. ft.
Fuel tank capacity 129 l
34.08 US gal | 28.38 UK gal
Permitted trailer load with brakes (12%) 14333 kg
31598.86 lbs.
Dimensions
Length 6462 mm
254.41 in.
Width 2438 mm
95.98 in.
Width including mirrors 2690 mm
105.91 in.
Height 2055 mm
80.91 in.
Wheelbase 4171 mm
164.21 in.
Front track 1755 mm
69.09 in.
Rear (Back) track 1897 mm
74.69 in.
Front overhang 970 mm
38.19 in.
Rear overhang 1321 mm
52.01 in.
Ride height (ground clearance) 198 mm
7.8 in.
Approach angle 18.4°
Departure angle 20.5°
Ramp-over (brakeover) angle 21.8°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, automatic transmission TorqShift
Front suspension Dependent spring suspension with anti-roll bar, Trailing arm
Rear suspension Rigid axle suspension, Leaf spring
Front brakes Ventilated discs, 363 mm
Rear brakes Ventilated discs, 363 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Cone worm with recirculation balls
Power steering Hydraulic Steering
Tires size 245/75 R17
Wheel rims size 17
