Specifications: Ford F-350 Super Duty V Crew Cab Short box 7.3 V8 (430 Hp) Automatic SRW 2023, 2024, 2025

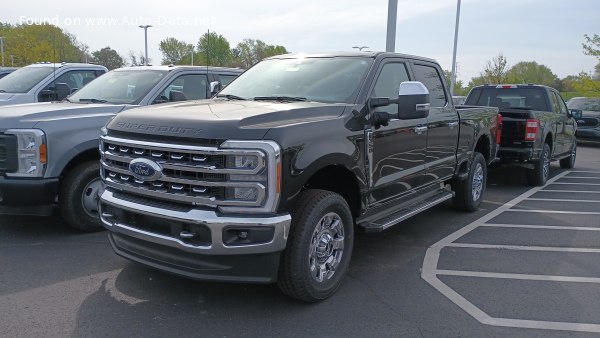

2023 Ford F-350 Super Duty V Crew Cab Short box - Photo 1

Ford F-350 Super Duty V Crew Cab Short box 7.3 V8 (430 Hp) Automatic SRW – Full specifications
General information
Brand Ford
Model F-350 Super Duty
Generation F-350 Super Duty V Crew Cab Short box
Modification (Engine) 7.3 V8 (430 Hp) Automatic SRW
Start of production 2023 year
Powertrain Architecture Internal Combustion engine
Body type Pick-up
Seats 6
Doors 4
Performance specs
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 6.8 kg/Hp, 148 Hp/tonne
Weight-to-torque ratio 4.4 kg/Nm, 226.5 Nm/tonne
Engine specs
Power 430 Hp @ 5500 rpm.
Power per litre 59 Hp/l
Torque 658 Nm @ 4000 rpm.
485.32 lb.-ft. @ 4000 rpm.
Engine layout Front, Longitudinal
Engine displacement 7292 cm3
444.99 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 107.19 mm
4.22 in.
Piston Stroke 101.09 mm
3.98 in.
Compression ratio 10.5:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 7.57 l
8 US qt | 6.66 UK qt
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Kerb Weight 2905-2931 kg
6404.43 – 6461.75 lbs.
Trunk (boot) space – maximum 1852 l
65.4 cu. ft.
Fuel tank capacity 129 l
34.08 US gal | 28.38 UK gal
Dimensions
Length 6350 mm
250 in.
Width 2032 mm
80 in.
Width including mirrors 2690 mm
105.91 in.
Height 2014 mm
79.29 in.
Wheelbase 4056 mm
159.69 in.
Front track 1765 mm
69.49 in.
Rear (Back) track 1910 mm
75.2 in.
Front overhang 970 mm
38.19 in.
Rear overhang 1326 mm
52.2 in.
Ride height (ground clearance) 257 mm
10.12 in.
Approach angle 21.5°
Departure angle 19.0°
Ramp-over (brakeover) angle 18.4°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 10 gears, automatic transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Rigid axle suspension, Leaf spring
Front brakes Ventilated discs, 363 mm
Rear brakes Ventilated discs, 363 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Cone worm with recirculation balls
Power steering Hydraulic Steering
Tires size 245/75 R17; 275/65 R18; 275/70 R18; 285/75 R18
