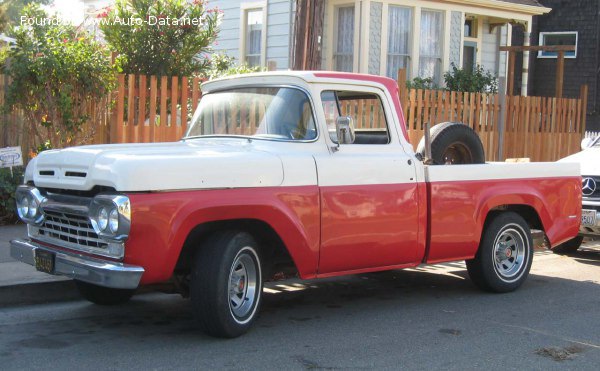

1957 Ford F-Series F-100 III - Photo 1

Ford F-Series F-100 III 4.8 292 V8 (186 Hp) Automatic – Full specifications

General information
Brand Ford
Model F-Series F-100/F-150
Generation F-Series F-100 III
Modification (Engine) 4.8 292 V8 (186 Hp) Automatic
Start of production 1958 year
End of production 1960 year
Powertrain Architecture Internal Combustion engine
Body type Pick-up
Seats 2-3
Doors 2
Performance specs
Fuel Type Petrol (Gasoline)
Engine specs
Power 186 Hp @ 4000 rpm.
Power per litre 38.9 Hp/l
Torque 365 Nm @ 2200-2700 rpm.
269.21 lb.-ft. @ 2200-2700 rpm.
Engine layout Front, Longitudinal
Engine displacement 4785 cm3
292 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 95.25 mm
3.75 in.
Piston Stroke 83.82 mm
3.3 in.
Fuel injection system Carburettor
Engine aspiration Naturally aspirated engine

Space, Volume and weights
Max. weight 2268 kg
5000.08 lbs.
Trunk (boot) space – minimum 1274-1998 l
44.99 – 70.56 cu. ft.
Dimensions
Wheelbase 2794-2997 mm
110 – 117.99 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 3 gears, automatic transmission Fordomatic
Front brakes Drum
Rear brakes Drum
Tires size 215/75 R15; 225/75 R15
Wheel rims size 7J x 15
