Specifications: Ford F-Series F-100 V 6.4 390 V8 (255 Hp) Automatic 1968, 1969, 1970, 1971, 1972

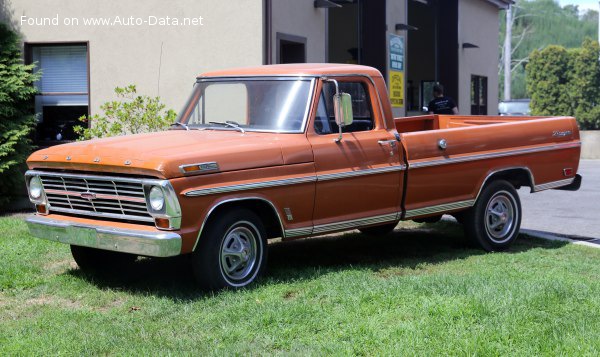

1967 Ford F-Series F-100 V - Photo 1

Ford F-Series F-100 V 6.4 390 V8 (255 Hp) Automatic – Full specifications
General information
Brand Ford
Model F-Series F-100/F-150
Generation F-Series F-100 V
Modification (Engine) 6.4 390 V8 (255 Hp) Automatic
Start of production 1968 year
End of production 1972 year
Powertrain Architecture Internal Combustion engine
Body type Pick-up
Seats 3
Doors 2
Performance specs
Fuel Type Petrol (Gasoline)
Engine specs
Power 255 Hp @ 4400 rpm.
Power per litre 39.9 Hp/l
Torque 510 Nm @ 2600 rpm.
376.16 lb.-ft. @ 2600 rpm.
Engine layout Front, Longitudinal
Engine displacement 6391 cm3
390 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 102.87 mm
4.05 in.
Piston Stroke 96.01 mm
3.78 in.
Compression ratio 8.6:1
Fuel injection system Carburettor
Engine aspiration Naturally aspirated engine

Space, Volume and weights
Max. weight 2268 kg
5000.08 lbs.
Trunk (boot) space – minimum 1274-2163 l
44.99 – 76.39 cu. ft.
Fuel tank capacity 74 l
19.55 US gal | 16.28 UK gal
Dimensions
Length 4636-5138 mm
182.52 – 202.28 in.
Wheelbase 2921-3327 mm
115 – 130.98 in.
Wading depth 658-660 mm
25.91 – 25.98 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 3 gears, automatic transmission Cruise-O-Matic
Front suspension Independent coil spring
Front brakes Drum
Rear brakes Drum
Steering type Cone worm with recirculation balls
Power steering Electric Steering
Tires size 215/75 R15; 225/75 R15
Wheel rims size 7J x 15
