Specifications: Ford F-Series F-150 VI Regular Cab 5.8 351 V8 (163 Hp) 1977, 1978, 1979

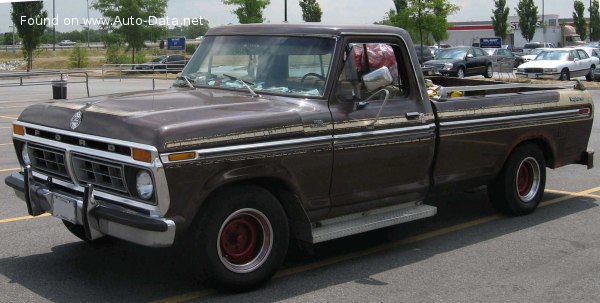

1975 Ford F-Series F-150 VI Regular Cab - Photo 1

Ford F-Series F-150 VI Regular Cab 5.8 351 V8 (163 Hp) – Full specifications
General information
Brand Ford
Model F-Series F-100/F-150
Generation F-Series F-150 VI Regular Cab
Modification (Engine) 5.8 351 V8 (163 Hp)
Start of production 1977 year
End of production 1979 year
Powertrain Architecture Internal Combustion engine
Body type Pick-up
Seats 3
Doors 2
Performance specs
Fuel Type Petrol (Gasoline)
Engine specs
Power 163 Hp
Power per litre 28.3 Hp/l
Engine layout Front, Longitudinal
Engine displacement 5752 cm3
351.01 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 101.6 mm
4 in.
Piston Stroke 88.9 mm
3.5 in.
Number of valves per cylinder 2
Fuel injection system Carburettor
Engine aspiration Naturally aspirated engine

Space, Volume and weights
Max. weight 2744 kg
6049.48 lbs.
Trunk (boot) space – minimum 1679-2084 l
59.29 – 73.6 cu. ft.
Fuel tank capacity 73 l
19.28 US gal | 16.06 UK gal
Dimensions
Length 5215 mm
205.31 in.
Wheelbase 3378 mm
132.99 in.
Wading depth 665 mm
26.18 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 3 gears, manual transmission
Front suspension Independent coil spring, Transverse stabilizer
Rear suspension Leaf spring
Front brakes Disc
Rear brakes Drum
Power steering Electric Steering
Tires size 215/75 R15; 225/75 R15
Wheel rims size 7J x 15
