Specifications: Ford F-Series F-150 X Regular Cab 5.4 V8 Triton (235 Hp) Automatic 1997, 1998

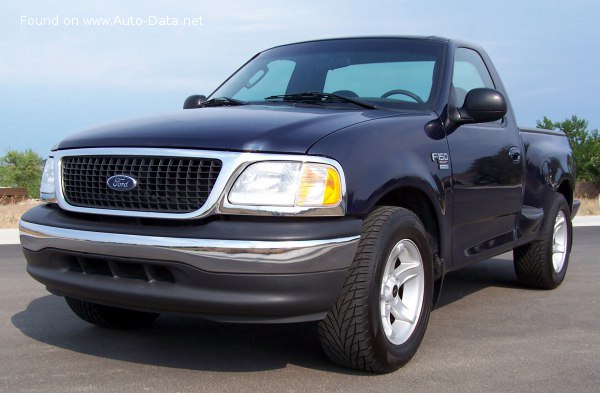

1997 Ford F-Series F-150 X Regular Cab - Photo 1

Ford F-Series F-150 X Regular Cab 5.4 V8 Triton (235 Hp) Automatic – Full specifications
General information
Brand Ford
Model F-Series F-100/F-150
Generation F-Series F-150 X Regular Cab
Modification (Engine) 5.4 V8 Triton (235 Hp) Automatic
Start of production 1997 year
End of production 1998 year
Powertrain Architecture Internal Combustion engine
Body type Pick-up
Seats 3
Doors 2
Performance specs
Fuel Type Petrol (Gasoline)
Engine specs
Power 235 Hp @ 4250 rpm.
Power per litre 43.5 Hp/l
Torque 447 Nm @ 3000 rpm.
329.69 lb.-ft. @ 3000 rpm.
Engine layout Front, Longitudinal
Engine displacement 5408 cm3
330.02 cu. in.
Number of cylinders 8
Engine configuration V-engine
Compression ratio 9:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain SOHC
Engine oil capacity 5.7 l
6.02 US qt | 5.02 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 22.6 l
23.88 US qt | 19.89 UK qt

Space, Volume and weights
Max. weight 2971 kg
6549.93 lbs.
Trunk (boot) space – minimum 1659 l
58.59 cu. ft.
Trunk (boot) space – maximum 2056 l
72.61 cu. ft.
Fuel tank capacity 95-114 l
25.1 – 30.12 US gal | 20.9 – 25.08 UK gal
Permitted trailer load with brakes (12%) 3719 kg
8198.99 lbs.
Dimensions
Length 5136-5608 mm
202.2 – 220.79 in.
Wheelbase 3048-3531 mm
120 – 139.02 in.
Ride height (ground clearance) 185 mm
7.28 in.
Wading depth 826-947 mm
32.52 – 37.28 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Independent coil spring, Transverse stabilizer
Front brakes Ventilated discs
Rear brakes Ventilated discs
Power steering Electric Steering
Tires size 235/70 R16; 255/70 R16
Wheel rims size 7.0J x 16
