Specifications: Ford F-Series F-150 X SuperCab 4.6 V8 Triton (231 Hp) 4×4 1999, 2000, 2001, 2002, 2003, 2004

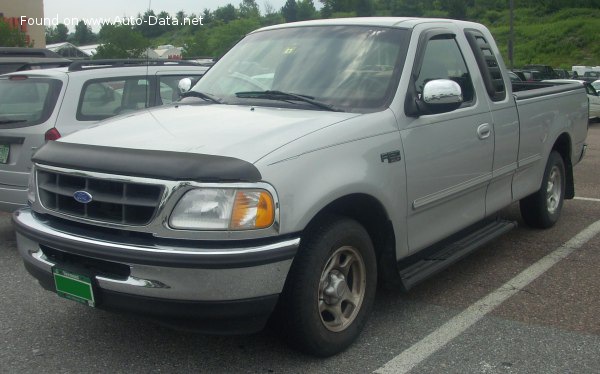

1997 Ford F-Series F-150 X SuperCab - Photo 1

Ford F-Series F-150 X SuperCab 4.6 V8 Triton (231 Hp) 4×4 – Full specifications
General information
Brand Ford
Model F-Series F-100/F-150
Generation F-Series F-150 X SuperCab
Modification (Engine) 4.6 V8 Triton (231 Hp) 4×4
Start of production 1999 year
End of production 2004 year
Powertrain Architecture Internal Combustion engine
Body type Pick-up
Seats 5-6
Doors 2
Performance specs
Fuel Type Petrol (Gasoline)
Engine specs
Power 231 Hp @ 4750 rpm.
Power per litre 50.2 Hp/l
Torque 397 Nm @ 3500 rpm.
292.81 lb.-ft. @ 3500 rpm.
Engine layout Front, Longitudinal
Engine displacement 4605 cm3
281.01 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 90.17 mm
3.55 in.
Piston Stroke 89.92 mm
3.54 in.
Compression ratio 9.3:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain SOHC
Engine oil capacity 5.7 l
6.02 US qt | 5.02 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 19.5 l
20.61 US qt | 17.16 UK qt

Space, Volume and weights
Max. weight 2835 kg
6250.11 lbs.
Trunk (boot) space – minimum 1422 l
50.22 cu. ft.
Trunk (boot) space – maximum 2056 l
72.61 cu. ft.
Fuel tank capacity 95-114 l
25.1 – 30.12 US gal | 20.9 – 25.08 UK gal
Permitted trailer load with brakes (12%) 1315 kg
2899.08 lbs.
Dimensions
Length 5736-6208 mm
225.83 – 244.41 in.
Width 2019 mm
79.49 in.
Height 1918 mm
75.51 in.
Wheelbase 3526-3998 mm
138.82 – 157.4 in.
Front overhang 983 mm
38.7 in.
Rear overhang 1227 mm
48.31 in.
Ride height (ground clearance) 206 mm
8.11 in.
Approach angle 25.8°
Departure angle 19.8°
Ramp-over (brakeover) angle 18.7°
Wading depth 886 mm
34.88 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Torsion
Rear suspension Leaf spring
Front brakes Ventilated discs, 308 mm
Rear brakes Ventilated discs, 335 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Cone worm with recirculation balls
Power steering Electric Steering
Tires size 235/70 R16
Wheel rims size 16
