Specifications: Ford F-Series F-150 XI Regular Cab 4.6 V8 Triton (231 Hp) Automatic 2004, 2005, 2006

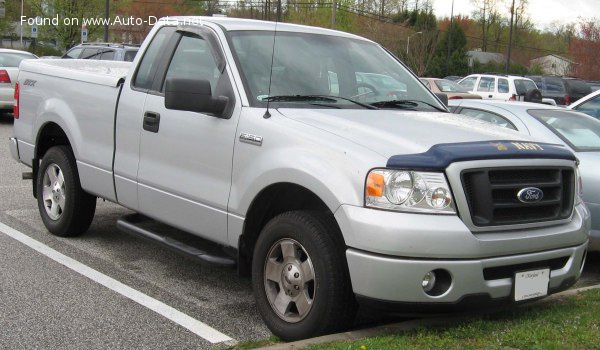

2004 Ford F-Series F-150 XI Regular Cab - Photo 1

Ford F-Series F-150 XI Regular Cab 4.6 V8 Triton (231 Hp) Automatic – Full specifications
General information
Brand Ford
Model F-Series F-100/F-150
Generation F-Series F-150 XI Regular Cab
Modification (Engine) 4.6 V8 Triton (231 Hp) Automatic
Start of production 2004 year
End of production 2006 year
Powertrain Architecture Internal Combustion engine
Body type Pick-up
Seats 3
Doors 2
Performance specs
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 9.2 kg/Hp, 108.1 Hp/tonne
Weight-to-torque ratio 5.4 kg/Nm, 185.9 Nm/tonne
Engine specs
Power 231 Hp @ 4750 rpm.
Power per litre 50.2 Hp/l
Torque 397 Nm @ 3500 rpm.
292.81 lb.-ft. @ 3500 rpm.
Engine layout Front, Longitudinal
Engine displacement 4605 cm3
281.01 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 90.17 mm
3.55 in.
Piston Stroke 89.92 mm
3.54 in.
Compression ratio 9.3:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain SOHC
Engine oil capacity 5.7 l
6.02 US qt | 5.02 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 19.4 l
20.5 US qt | 17.07 UK qt

Space, Volume and weights
Kerb Weight 2136-2195 kg
4709.07 – 4839.15 lbs.
Max. weight 3084 kg
6799.06 lbs.
Max load 889-948 kg
1959.91 – 2089.98 lbs.
Fuel tank capacity 98-135 l
25.89 – 35.66 US gal | 21.56 – 29.7 UK gal
Permitted trailer load with brakes (12%) 5534 kg
12200.38 lbs.
Dimensions
Length 5364-5837 mm
211.18 – 229.8 in.
Width 2004 mm
78.9 in.
Height 1869-1920 mm
73.58 – 75.59 in.
Wheelbase 3200-3670 mm
125.98 – 144.49 in.
Front track 1702 mm
67.01 in.
Rear (Back) track 1702 mm
67.01 in.
Minimum turning circle (turning diameter) 12.7-14.1 m
41.67 – 46.26 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Double wishbone
Rear suspension Leaf spring
Front brakes Ventilated discs, 330 mm
Rear brakes Ventilated discs, 348 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 235/70 R17; 265/60 R18
Wheel rims size 17; 18
