Specifications: Ford F-Series F-150 XI SuperCab 4.6 V8 Triton (248 Hp) 4×4 Automatic 2007, 2008

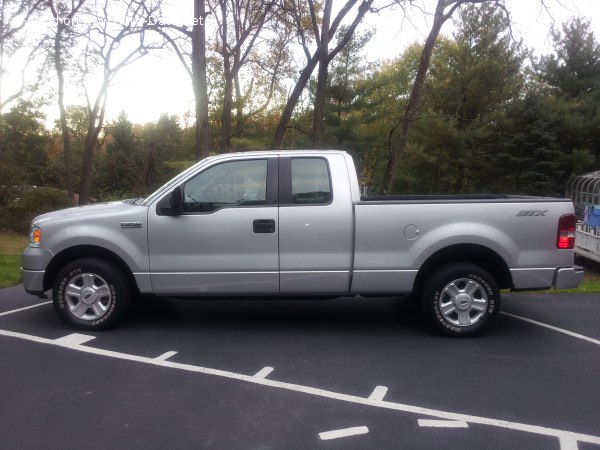

2004 Ford F-Series F-150 XI SuperCab - Photo 1

Ford F-Series F-150 XI SuperCab 4.6 V8 Triton (248 Hp) 4×4 Automatic – Full specifications
General information
Brand Ford
Model F-Series F-100/F-150
Generation F-Series F-150 XI SuperCab
Modification (Engine) 4.6 V8 Triton (248 Hp) 4×4 Automatic
Start of production 2007 year
End of production July, 2008 year
Powertrain Architecture Internal Combustion engine
Body type Pick-up
Seats 5-6
Doors 2
Performance specs
Fuel consumption (economy) – urban 15.7 l/100 km
15 US mpg
18 UK mpg
6.4 km/l
Fuel consumption (economy) – extra urban 12.4 l/100 km
19 US mpg
22.8 UK mpg
8.1 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 9.5 kg/Hp, 105.6 Hp/tonne
Weight-to-torque ratio 5.9 kg/Nm, 169.9 Nm/tonne
Engine specs
Power 248 Hp @ 4750 rpm.
Power per litre 53.9 Hp/l
Torque 399 Nm @ 4000 rpm.
294.29 lb.-ft. @ 4000 rpm.
Engine layout Front, Longitudinal
Engine displacement 4605 cm3
281.01 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 90.17 mm
3.55 in.
Piston Stroke 89.92 mm
3.54 in.
Compression ratio 9.4:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain SOHC
Engine oil capacity 5.7 l
6.02 US qt | 5.02 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 19.4 l
20.5 US qt | 17.07 UK qt

Space, Volume and weights
Kerb Weight 2348-2388 kg
5176.45 – 5264.64 lbs.
Max. weight 3152 kg
6948.97 lbs.
Max load 764-804 kg
1684.33 – 1772.52 lbs.
Fuel tank capacity 98-135 l
25.89 – 35.66 US gal | 21.56 – 29.7 UK gal
Permitted trailer load with brakes (12%) 3039 kg
6699.85 lbs.
Dimensions
Length 5532-5837 mm
217.8 – 229.8 in.
Width 2004 mm
78.9 in.
Height 1920-1943 mm
75.59 – 76.5 in.
Wheelbase 3366-3670 mm
132.52 – 144.49 in.
Front track 1702 mm
67.01 in.
Rear (Back) track 1702 mm
67.01 in.
Minimum turning circle (turning diameter) 13.3-14.1 m
43.64 – 46.26 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Double wishbone
Rear suspension Leaf spring
Front brakes Ventilated discs, 330 mm
Rear brakes Ventilated discs, 348 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 235/70 R17; 275/65 R18
Wheel rims size 17; 18
