Specifications: Ford F-Series F-150 XII SuperCab 3.5 V6 EcoBoost (365 Hp) Automatic 2011, 2012, 2013, 2014

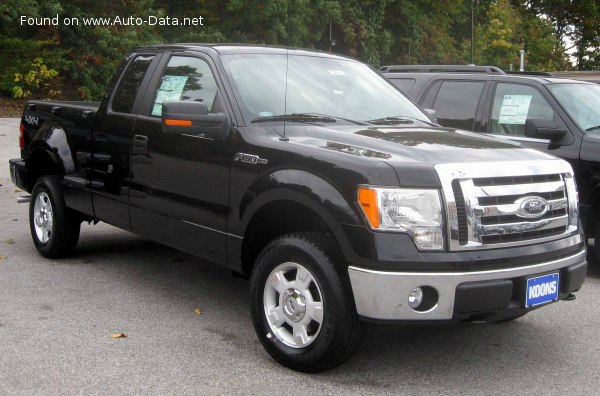

2009 Ford F-Series F-150 XII SuperCab - Photo 1

Ford F-Series F-150 XII SuperCab 3.5 V6 EcoBoost (365 Hp) Automatic – Full specifications
General information
Brand Ford
Model F-Series F-100/F-150
Generation F-Series F-150 XII SuperCab
Modification (Engine) 3.5 V6 EcoBoost (365 Hp) Automatic
Start of production 2011 year
End of production 2014 year
Powertrain Architecture Internal Combustion engine
Body type Pick-up
Seats 5-6
Doors 2
Performance specs
Fuel consumption (economy) – urban 14.7 l/100 km
16 US mpg
19.2 UK mpg
6.8 km/l
Fuel consumption (economy) – extra urban 10.7 l/100 km
22 US mpg
26.4 UK mpg
9.3 km/l
Fuel consumption (economy) – combined 13.1 l/100 km
18 US mpg
21.6 UK mpg
7.6 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 6.7 kg/Hp, 150 Hp/tonne
Weight-to-torque ratio 4.3 kg/Nm, 233.8 Nm/tonne
Engine specs
Power 365 Hp @ 5000 rpm.
Power per litre 104.1 Hp/l
Torque 569 Nm @ 2500 rpm.
419.67 lb.-ft. @ 2500 rpm.
Engine layout Front, Longitudinal
Engine displacement 3507 cm3
214.01 cu. in.
Number of cylinders 6
Engine configuration V-engine
Compression ratio 10:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Twin-Turbo, Intercooler
Valvetrain DOHC, Ti-VCT
Engine oil capacity 5.7 l
6.02 US qt | 5.02 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 15.6 l
16.48 US qt | 13.73 UK qt

Space, Volume and weights
Kerb Weight 2434-2494 kg
5366.05 – 5498.33 lbs.
Max. weight 3719 kg
8198.99 lbs.
Max load 1225-1285 kg
2700.66 – 2832.94 lbs.
Fuel tank capacity 98 l
25.89 US gal | 21.56 UK gal
Permitted trailer load with brakes (12%) 5126 kg
11300.9 lbs.
Dimensions
Length 5890-6360 mm
231.89 – 250.39 in.
Width 2012 mm
79.21 in.
Width including mirrors 2464 mm
97.01 in.
Height 1900-1910 mm
74.8 – 75.2 in.
Wheelbase 3670-4143 mm
144.49 – 163.11 in.
Front track 1702 mm
67.01 in.
Rear (Back) track 1702 mm
67.01 in.
Minimum turning circle (turning diameter) 14.3-15.9 m
46.92 – 52.17 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Double wishbone
Rear suspension Leaf spring
Front brakes Ventilated discs, 351×34 mm
Rear brakes Ventilated discs, 348×25 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 255/70 R17; 265/60 R18; 275/55 R20
Wheel rims size 7.5J x 17; 7.5j x 18; 8.5J x 20
