Specifications: Ford F-Series F-150 XIV SuperCrew 5.0 Ti-VCT V8 (400 Hp) FFV 4×4 Automatic 2020, 2021, 2022, 2023

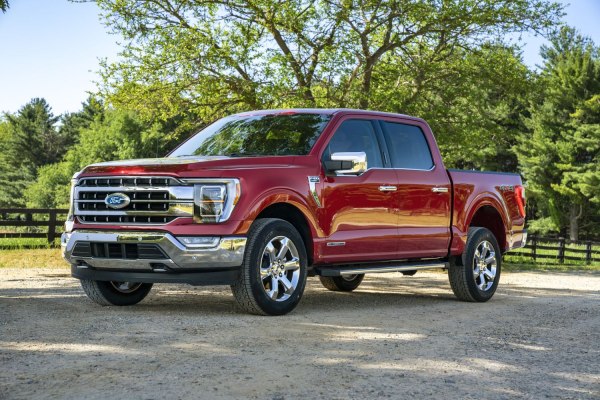

2021 Ford F-Series F-150 XIV SuperCrew - Photo 1

Ford F-Series F-150 XIV SuperCrew 5.0 Ti-VCT V8 (400 Hp) FFV 4×4 Automatic – Full specifications
General information
Brand Ford
Model F-Series F-100/F-150
Generation F-Series F-150 XIV SuperCrew
Modification (Engine) 5.0 Ti-VCT V8 (400 Hp) FFV 4×4 Automatic
Start of production October, 2020 year
End of production 2023 year
Powertrain Architecture Internal Combustion engine
Body type Pick-up
Seats 5-6
Doors 4
Performance specs
Fuel consumption (economy) – urban 14.7 l/100 km
16 US mpg
19.2 UK mpg
6.8 km/l
Fuel consumption (economy) – extra urban 10.7 l/100 km
22 US mpg
26.4 UK mpg
9.3 km/l
Fuel consumption (economy) – combined 12.4 l/100 km
19 US mpg
22.8 UK mpg
8.1 km/l
Fuel Type Petrol / Ethanol – E85
Weight-to-power ratio 5.6 kg/Hp, 179.5 Hp/tonne
Weight-to-torque ratio 4 kg/Nm, 249.6 Nm/tonne
Engine specs
Power 400 Hp @ 6000 rpm.
Power per litre 79.4 Hp/l
Torque 556 Nm @ 4250 rpm.
410.08 lb.-ft. @ 4250 rpm.
Engine layout Front, Longitudinal
Engine displacement 5038 cm3
307.44 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 92.96 mm
3.66 in.
Piston Stroke 92.71 mm
3.65 in.
Compression ratio 12:1
Fuel injection system Direct injection and Multi-port manifold injection
Engine oil capacity 7.3 l
7.71 US qt | 6.42 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 12.5 l
13.21 US qt | 11 UK qt
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 2228-2274 kg
4911.9 – 5013.31 lbs.
Max. weight 3561 kg
7850.66 lbs.
Max load 1287-1333 kg
2837.35 – 2938.76 lbs.
Trunk (boot) space – minimum 1495-1764 l
52.8 – 62.3 cu. ft.
Fuel tank capacity 87-136 l
22.98 – 35.93 US gal | 19.14 – 29.92 UK gal
Permitted trailer load with brakes (12%) 5897 kg
13000.66 lbs.
Dimensions
Length 5885-6185 mm
231.69 – 243.5 in.
Width 2029 mm
79.88 in.
Width with mirrors folded 2123 mm
83.58 in.
Width including mirrors 2431 mm
95.71 in.
Height 1961-1971 mm
77.2 – 77.6 in.
Wheelbase 3693-3993 mm
145.39 – 157.2 in.
Front track 1725 mm
67.91 in.
Rear (Back) track 1735 mm
68.31 in.
Front overhang 955 mm
37.6 in.
Rear overhang 1234 mm
48.58 in.
Ride height (ground clearance) 224-239 mm
8.82 – 9.41 in.
Minimum turning circle (turning diameter) 14.6-15.6 m
47.9 – 51.18 ft.
Approach angle 24-24.3°
Departure angle 25.3-26.3°
Ramp-over (brakeover) angle 19-20°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 10 gears, automatic transmission SelectShift
Front suspension Double wishbone
Rear suspension Leaf spring
Front brakes Ventilated discs, 350×34 mm
Rear brakes Ventilated discs, 336×20 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 245/70 R17 110T; 265/70 R17 115T; 265/60 R18 110T; 275/65 R18 116T; 275/60 R20 115T
Wheel rims size 7.5J x 17; 7.5J x 18; 8.5J x 20
