Specifications: Ford F-Series F-250 VI SuperCab 7.5 460 V8 (220 Hp) Automatic 1977, 1978, 1979

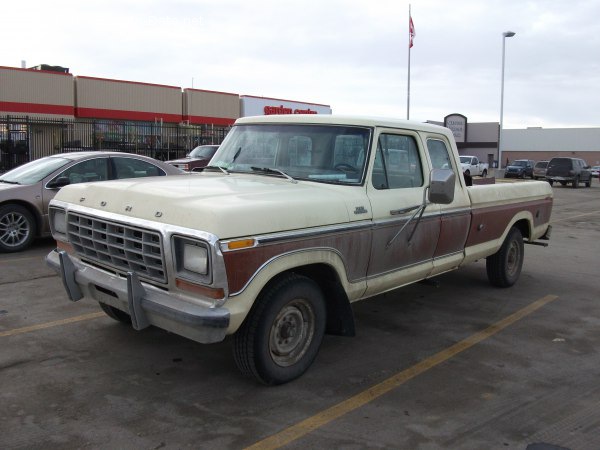

1975 Ford F-Series F-250 VI SuperCab - Photo 1

Ford F-Series F-250 VI SuperCab 7.5 460 V8 (220 Hp) Automatic – Full specifications
General information
Brand Ford
Model F-Series F-250
Generation F-Series F-250 VI SuperCab
Modification (Engine) 7.5 460 V8 (220 Hp) Automatic
Start of production 1977 year
End of production 1979 year
Powertrain Architecture Internal Combustion engine
Body type Pick-up
Seats 6
Doors 2
Performance specs
Fuel Type Petrol (Gasoline)
Engine specs
Power 220 Hp
Power per litre 29.2 Hp/l
Engine layout Front, Longitudinal
Engine displacement 7538 cm3
460 cu. in.
Number of cylinders 8
Engine configuration V-engine
Piston Stroke 97.79 mm
3.85 in.
Number of valves per cylinder 4
Fuel injection system Carburettor
Engine aspiration Naturally aspirated engine

Space, Volume and weights
Max. weight 3674 kg
8099.78 lbs.
Trunk (boot) space – minimum 1727-2084 l
60.99 – 73.6 cu. ft.
Fuel tank capacity 73 l
19.28 US gal | 16.06 UK gal
Dimensions
Length 5362-5773 mm
211.1 – 227.28 in.
Wheelbase 3531-3937 mm
139.02 – 155 in.
Wading depth 673-678 mm
26.5 – 26.69 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission Cruise-O-Matic
Front suspension Independent coil spring, Transverse stabilizer
Rear suspension Transverse stabilizer, Leaf spring
Front brakes Disc
Rear brakes Drum
Power steering Electric Steering
Tires size 215/85 R16.5
Wheel rims size 6J x 16.5
