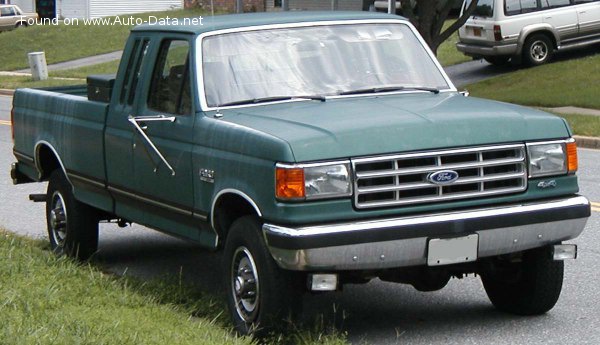

Specifications: Ford F-Series F-250 VIII SuperCab HD 5.8 V8 Windsor (210 Hp) 4×4 Automatic 1988, 1989, 1990, 1991

Ford F-Series F-250 VIII SuperCab HD 5.8 V8 Windsor (210 Hp) 4×4 Automatic – Full specifications
General information
Brand	Ford
Model	F-Series F-250
Generation	F-Series F-250 VIII SuperCab HD
Modification (Engine)	5.8 V8 Windsor (210 Hp) 4×4 Automatic
Start of production	1988 year
End of production	1991 year
Powertrain Architecture	Internal Combustion engine
Body type	Pick-up
Seats	6
Doors	2
Performance specs
Fuel Type	Petrol (Gasoline)
Engine specs
Power	210 Hp @ 3800 rpm.
Power per litre	36.5 Hp/l
Torque	427 Nm @ 2800 rpm. 314.94 lb.-ft. @ 2800 rpm.
Engine layout	Front, Longitudinal
Engine displacement	5752 cm³ 351.01 cu. in.
Number of cylinders	8
Engine configuration	V-engine
Cylinder Bore	101.6 mm 4 in.
Piston Stroke	88.9 mm 3.5 in.
Compression ratio	8.8:1
Fuel injection system	Multi-port manifold injection
Engine aspiration	Naturally aspirated engine

Space, Volume and weights
Max. weight	3992 kg 8800.85 lbs.
Fuel tank capacity	141 l 37.25 US gal \| 31.02 UK gal
Dimensions
Length	5895 mm 232.09 in.
Width	1778 mm 70 in.
Height	1956 mm 77.01 in.
Wheelbase	3937 mm 155 in.
Wading depth	914 mm 35.98 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture	The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel	All wheel drive (4×4)
Number of gears and type of gearbox	4 gears, automatic transmission
Front suspension	Leaf spring
Rear suspension	Leaf spring
Front brakes	Disc
Rear brakes	Drum
Power steering	Electric Steering
Tires size	235/85 R16
Wheel rims size	16
