| General information | |
|---|---|
| Brand | Ford |

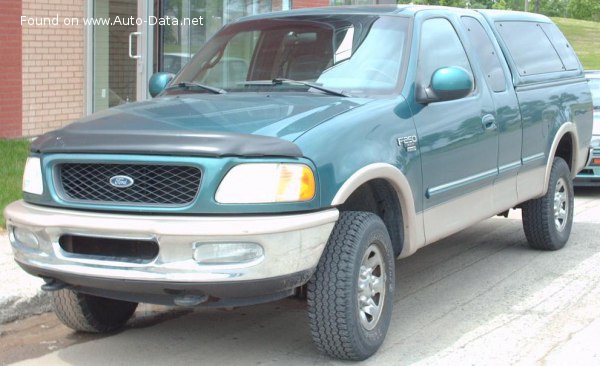

| Model | F-Series F-250 |
| Generation | F-Series F-250 X SuperCab |
| Modification (Engine) | 5.4 V8 Triton (235 Hp) 4×4 Automatic |
| Start of production | July, 1996 year |
| End of production | 1999 year |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Pick-up |
| Seats | 5-6 |
| Doors | 2 |
| Performance specs | |
| Fuel Type | Petrol (Gasoline) |
| Engine specs | |
| Power | 235 Hp @ 4250 rpm. |
| Power per litre | 43.5 Hp/l |
| Torque | 447 Nm @ 3000 rpm. 329.69 lb.-ft. @ 3000 rpm. |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | Triton |
| Engine displacement | 5408 cm3 330.02 cu. in. |
| Number of cylinders | 8 |
| Engine configuration | V-engine |
| Compression ratio | 9:1 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Engine oil capacity | 5.7 l 6.02 US qt | 5.02 UK qt |
| Engine oil specification |  Log in to see. |
| Coolant | 16.9 l 17.86 US qt | 14.87 UK qt |
|
|
|
| Space, Volume and weights | |
| Max. weight | 3493 kg 7700.75 lbs. |
| Trunk (boot) space – minimum | 1659 l 58.59 cu. ft. |
| Fuel tank capacity | 95 l 25.1 US gal | 20.9 UK gal |
| Permitted trailer load with brakes (12%) | 3765 kg 8300.4 lbs. |
| Dimensions | |
| Length | 5608-5646 mm 220.79 – 222.28 in. |
| Width | 1656 mm 65.2 in. |
| Wheelbase | 3531 mm 139.02 in. |
| Ride height (ground clearance) | 193 mm 7.6 in. |
| Wading depth | 930 mm 36.61 in. |
| Drivetrain, brakes and suspension specs | |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary. |
| Drive wheel | All wheel drive (4×4) |
| Number of gears and type of gearbox | 4 gears, automatic transmission |
| Front suspension | Torsion |
| Front brakes | Ventilated discs |
| Rear brakes | Ventilated discs |
| Power steering | Electric Steering |
| Tires size | 245/75 R16 |
| Wheel rims size | 7.0J x 16 |
