Specifications: Ford Falcon (FG) 4.0 E-Gas (212 Hp) Automatic 2008, 2009, 2010, 2011

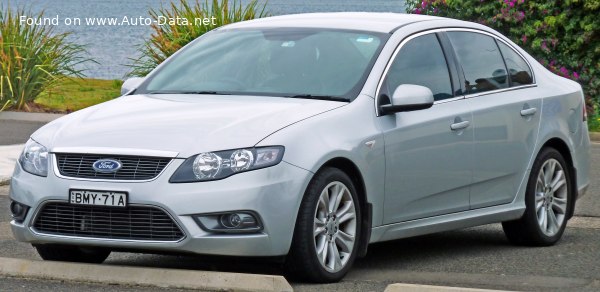

2008 Ford Falcon (FG) - Photo 1

Ford Falcon (FG) 4.0 E-Gas (212 Hp) Automatic – Full specifications
General information
Brand Ford
Model Falcon
Generation Falcon (FG)
Modification (Engine) 4.0 E-Gas (212 Hp) Automatic
Start of production 2008 year
End of production 2011 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – combined 14.9 l/100 km
15.8 US mpg
19 UK mpg
6.7 km/l
Fuel Type LPG
Engine specs
Power 212 Hp @ 4750 rpm.
Power per litre 53.2 Hp/l
Torque 371 Nm @ 2750 rpm.
273.64 lb.-ft. @ 2750 rpm.
Engine layout Front, Longitudinal
Engine Model/Code Barra E-Gas
Engine displacement 3984 cm3
243.12 cu. in.
Number of cylinders 6
Engine configuration Inline
Cylinder Bore 92.25 mm
3.63 in.
Piston Stroke 99.31 mm
3.91 in.
Compression ratio 10.3:1
Number of valves per cylinder 4
Fuel injection system Carburettor
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Trunk (boot) space – minimum 408 l
14.41 cu. ft.
Fuel tank capacity 93 l
24.57 US gal | 20.46 UK gal
Dimensions
Length 4955 mm
195.08 in.
Width 1868 mm
73.54 in.
Width including mirrors 2100 mm
82.68 in.
Height 1453 mm
57.2 in.
Wheelbase 2838 mm
111.73 in.
Front track 1583 mm
62.32 in.
Rear (Back) track 1598 mm
62.91 in.
Front overhang 942 mm
37.09 in.
Rear overhang 1175 mm
46.26 in.
Minimum turning circle (turning diameter) 11 m
36.09 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Double wishbone
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 215/60 R16; 235/50 R17; 245/40 R18; 245/35 R19
Wheel rims size 6.5J x 16; 8J x 17; 8J x 18; 8J x 19
