Specifications: Ford Falcon (FG, facelift 2011) 4.0 DI-VCT Turbo (367 Hp) Automatic 2011, 2012, 2013, 2014

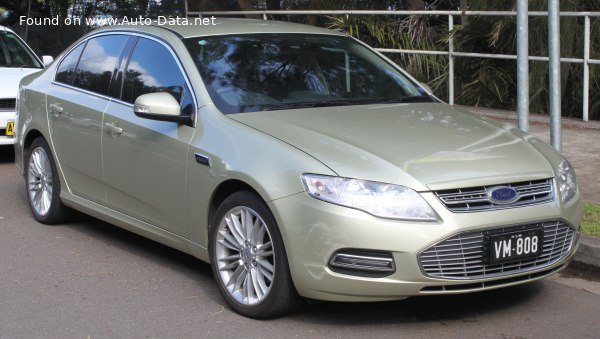

2012 Ford Falcon (FG, facelift 2011) - Photo 1

Ford Falcon (FG, facelift 2011) 4.0 DI-VCT Turbo (367 Hp) Automatic – Full specifications
General information
Brand Ford
Model Falcon
Generation Falcon (FG, facelift 2011)
Modification (Engine) 4.0 DI-VCT Turbo (367 Hp) Automatic
Start of production 2011 year
End of production 2014 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 16.9 l/100 km
13.9 US mpg
16.7 UK mpg
5.9 km/l
Fuel consumption (economy) – extra urban 8.8 l/100 km
26.7 US mpg
32.1 UK mpg
11.4 km/l
Fuel consumption (economy) – combined 11.7 l/100 km
20.1 US mpg
24.1 UK mpg
8.5 km/l
CO2 emissions 278 g/km
Fuel Type Petrol (Gasoline)
Engine specs
Power 367 Hp @ 5250 rpm.
Power per litre 92.1 Hp/l
Torque 533 Nm @ 2000-4750 rpm.
393.12 lb.-ft. @ 2000-4750 rpm.
Engine layout Front, Longitudinal
Engine Model/Code Barra 270T
Engine displacement 3983 cm3
243.06 cu. in.
Number of cylinders 6
Engine configuration Inline
Cylinder Bore 92.26 mm
3.63 in.
Piston Stroke 99.31 mm
3.91 in.
Compression ratio 8.8:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC

Space, Volume and weights
Trunk (boot) space – minimum 535 l
18.89 cu. ft.
Fuel tank capacity 68 l
17.96 US gal | 14.96 UK gal
Permitted trailer load with brakes (12%) 2300 kg
5070.63 lbs.
Dimensions
Length 4970 mm
195.67 in.
Width 1868 mm
73.54 in.
Width including mirrors 2100 mm
82.68 in.
Height 1433 mm
56.42 in.
Wheelbase 2838 mm
111.73 in.
Front track 1583 mm
62.32 in.
Rear (Back) track 1598 mm
62.91 in.
Front overhang 954 mm
37.56 in.
Rear overhang 1179 mm
46.42 in.
Minimum turning circle (turning diameter) 11 m
36.09 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Double wishbone
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 245/40 R18; 245/35 R19
Wheel rims size 8J x 18; 8J x 19
