Specifications: Ford Falcon (FG, facelift 2011) 4.0 EcoLPi (269 Hp) Automatic 2011, 2012, 2013, 2014

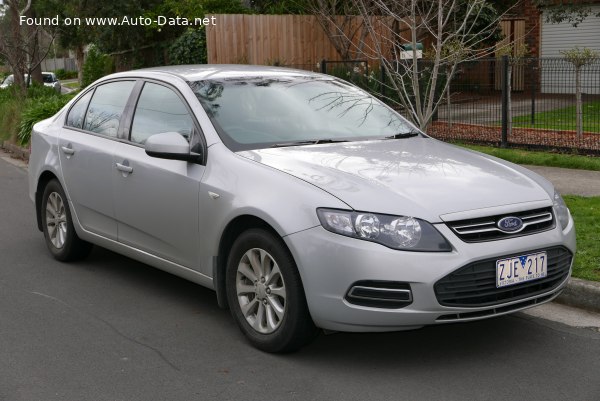

2012 Ford Falcon (FG, facelift 2011) - Photo 1

Ford Falcon (FG, facelift 2011) 4.0 EcoLPi (269 Hp) Automatic – Full specifications
General information
Brand Ford
Model Falcon
Generation Falcon (FG, facelift 2011)
Modification (Engine) 4.0 EcoLPi (269 Hp) Automatic
Start of production 2011 year
End of production 2014 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 17.9 l/100 km
13.1 US mpg
15.8 UK mpg
5.6 km/l
Fuel consumption (economy) – extra urban 9.4 l/100 km
25 US mpg
30.1 UK mpg
10.6 km/l
Fuel consumption (economy) – combined 12.3 l/100 km
19.1 US mpg
23 UK mpg
8.1 km/l
CO2 emissions 199 g/km
Fuel Type LPG
Weight-to-power ratio 6.5 kg/Hp, 153.1 Hp/tonne
Weight-to-torque ratio 4.3 kg/Nm, 232.8 Nm/tonne
Engine specs
Power 269 Hp @ 5000 rpm.
Power per litre 67.5 Hp/l
Torque 409 Nm @ 3250 rpm.
301.66 lb.-ft. @ 3250 rpm.
Engine layout Front, Longitudinal
Engine Model/Code Barra EcoLPi
Engine displacement 3983 cm3
243.06 cu. in.
Number of cylinders 6
Engine configuration Inline
Cylinder Bore 92.25 mm
3.63 in.
Piston Stroke 99.31 mm
3.91 in.
Compression ratio 12:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC

Space, Volume and weights
Kerb Weight 1757 kg
3873.52 lbs.
Trunk (boot) space – minimum 464 l
16.39 cu. ft.
Fuel tank capacity 88 l
23.25 US gal | 19.36 UK gal
Dimensions
Length 4955 mm
195.08 in.
Width 1868 mm
73.54 in.
Width including mirrors 2100 mm
82.68 in.
Height 1453 mm
57.2 in.
Wheelbase 2838 mm
111.73 in.
Front track 1583 mm
62.32 in.
Rear (Back) track 1598 mm
62.91 in.
Front overhang 942 mm
37.09 in.
Rear overhang 1175 mm
46.26 in.
Minimum turning circle (turning diameter) 11 m
36.09 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Double wishbone
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 215/60 R16; 235/50 17; 245/40 R18; 245/35 R19
Wheel rims size 6.5J x 16; 8J x 17; 8J x 18; 8J x 19
